StoTherm Insulation for Timber
or Steel Frame


Insulation Systems for Cavity Construction



Overview

StoTherm Insulation is an exterior insulation finishing system (EIFS) for timber or steel frame construction. Consisting of 40 to 100mm and over thick EPS StoTherm Panels or Sto Therm+ Panels which increase R-values by up to a further 20% for better energy efficiency and savings.



Sto, a world leader in manufacturing insulated render systems has provided over 150 million square metres of insulated cladding to date and has been tried and tested in every climate around the world for proven insulation performance.








Brochure

Brochure
StoTherm Insulation on Timber/Steel Frame - Energy-efficiency
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



StoTherm - Christchurch StoTherm - Christchurch StoTherm Facade - Christchurch Bayswater, Mt Manganui



StoTherm EIFS Image 1 StoTherm EIFS Image 2 StoTherm EIFS Image 3 StoTherm EIFS Image 4
StoTherm EIFS Image 5 StoTherm EIFS Image 6 StoTherm EIFS Image 7 StoTherm EIFSImage 8
StoTherm EIFS Image 10 StoTherm EIFS Image 11 StoTherm EIFS Image 12 StoTherm EIFS Image 11
StoTherm EIFS Image 12 StoTherm EIFS Image 17 StoTherm EIFS Image 15 StoTherm EIFS Image 16
StoTherm EIFS Image 18 StoTherm EIFS Image 20 StoTherm EIFS Image 21 StoTherm EIFS Image 19



Click here to hide images.












Benefits at a glance

StoTherm is one of the world's most successful facade insulation systems. As the first exterior insulation finishing system (EIFS), it was developed from the outset with a focus on safety and long-term material behaviour and has since been continually improved. StoTherm has one of the lowest complaint rates thanks to its high system reliability and durability.



  • BRANZ Appraised
  • 15 to 20 year warranty with maintenance schedule
  • External dew point
  • Combats condensation and mould
  • Designed with minimal thermal conductivity and thermal bridging
  • Complete installation and supply by Sto registered LBP contractor
  • Easy to cut and detail plus easy assembly
  • High impact-resistant load-bearing structure to more than 60 joule
  • Very high crack resistance
  • Highly weather-resistant
  • Ventilated-cavity deisgn
  • StoFlexy meshed waterproofing for horizontal surfaces and foundations
  • Breathable light weight and vapour permeability
  • Existing and new buildings












StoTherm Armat Insulation System

StoTherm Armat is a BRANZ appraised insulation and render system installed on timber or steel frame, consisting of EPS StoTherm Insulation Panels fixed with anchors which avoid thermal bridging.



The StoTherm panels are basecoat to straighten any irregularities. Followed by StoArmat render and glass fibre mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoTherm Armat Insulation System
Click on each of the layers below to view the components of the System.





Component Builder sto_therm_classic_system_110 sto_therm_classic_system_120 sto_therm_classic_system_130 sto_therm_classic_system_140 sto_therm_classic_system_150 sto_therm_classic_system_141 sto_therm_classic_system_160 sto_therm_classic_system_170



01

Cavity Batten

Sto EPS vented self adhesive cavity batten.



02

Insulation: Expanded Polystyrene Sheet

40/100mm "H/M" grade self-extinguishing sheet, manufactured to AS 1366 Part 3 by an approved manufacturer.



poly

03

Basecoat: StoLevell Novo / LevelLite Mineral Render

Lightweight EPS bead mineral render (plaster) with good build properties, water retention agents and machine application properties.



levelite



04

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



05

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



06

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



07

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 478

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assurance












StoTherm Vario Insulation System

The StoTherm Vario Insulation System is a BRANZ appraised high performance, low cost, EPS expanded polystyrene insulation system fixed with anchors which avoid thermal bridging. Reinforced with a mineral-based meshed reinforcement render and finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a weather tight reinforcement system enhancing reliability and protection.



Installations are implemented by a Sto Registered Licensed Building Practitioner and available with a Sto 15 year Warranty and StoService Assurance, with Building code material component compliance and Sto QA standard workmanship guaranteed; delivering an economically sound and practical solution for your facade requirements, including a service plan for security.











StoTherm Vario Insulation System
Click on each of the layers below to view the components of the system.







Component Builder sto_therm_system_210 sto_therm_system_220 sto_therm_system_230 sto_therm_system_240 sto_therm_system_231 sto_therm_system_250 sto_therm_system_260



01

Cavity Batten

Sto EPS vented self adhesive cavity batten.



02

Insulation: Expanded Polystyrene Sheet

40/100mm "H/M" grade self-extinguishing sheet, manufactured to AS 1366 Part 3 by an approved manufacturer.



poly

03

Basecoat: StoLevell Uni Render

White mineral render (plaster) with good adhesion and a calibration grain. Forms a traditional mashed basecoat for EIFS systems



levelite



04

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



05

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range



plaster bucket



06

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 478

sto warranty

Sto 15 Year Warranty with StoService Assurance














Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint








TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF



Reinforcement Mesh:



TDS
Sto Glass Fibre Mesh 4mm
PDF
TDS
Sto Glass Fibre Mesh 7mm
PDF



Reinforcement Render / Base Render:



TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
LevelLite Mineral Render
PDF PDF
TDS / MSDS
Multiscreed 6/8 mm
PDF PDF
TDS / MSDS
StoLevell Uni
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download an Editable Specification

Please register all completed Sto specifications to info@sto.co.nz to ensure project confirmation and Sto warranty.



SS-105
StoTherm StoMiral Insulated Facade System
Specification Icon
SS-106
StoTherm StoArmat Insulated Facade System
Specification Icon
MasterSpec
4284ST - StoTherm EIFS Cladding
Specification Icon



Download a BRANZ Appraisal



BRANZ Appraisal
478 - StoTherm Insulation Timber/Steel Frame
Branz Appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



ST-ALL
StoTherm Insulated Facade System - Complete Detail Set (6.3mb)
PDF
BIM
Revit Wall Structure Files
PDF





Download an Individual Detail



Drawing Register and Introduction Series 000

sto detail expand
ST-000-All
Introduction Series 000 - Complete Set
PDF
ST-001-005
Drawing Register
DWGPDF
ST-006
StoTherm Insulated Facade System Introduction
DWGPDF
ST-007
StoTherm Insulated Facade System Reinforcing Mesh Application
DWGPDF
ST-008
StoTherm Insulated Facade System Panel Information
DWGPDF



Panel Layout Series 100

sto detail expand
ST-100-All
Panel Layout Series 100 - Complete Set
PDF
ST-100
StoTherm Insulated Facade System SS 106 StoTherm StoArmat Render System
DWGPDF
ST-101
StoTherm Insulated Facade System SS 105 StoTherm StoMiral Render System
DWGPDF
ST-102
StoTherm Insulated Facade System EPS sheet and Fixing Layout Typical Elevation
DWGPDF
ST-103
StoTherm Insulated Facade System StoTherm Panel Layout
DWGPDF



Foundation Series 200

sto detail expand
ST-200-All
Foundation Series 200 - Complete Set
PDF
ST-200
StoTherm Insulated Facade System Foundation Slab-on-Ground
DWGPDF
ST-201
StoTherm Insulated Facade System Insulated Slab-on-Ground
DWGPDF
ST-202
StoTherm Insulated Facade System Rebated Slab-on-Ground - Render Finish
DWGPDF
ST-203
StoTherm Insulated Facade System Ribraft Floor System/Edge Detail
DWGPDF
ST-204
StoTherm Insulated Facade System Conc.Block Foundation Edge Detail
DWGPDF
ST-205
StoTherm Insulated Facade System EPS Block Foundation Detail
DWGPDF
ST-206
StoTherm Insulated Facade System Solid Conc. Foundation Edge Detail
DWGPDF
ST-207
StoTherm Insulated Facade System Conc. Continuous Perimeter Foundation Wall
DWGPDF
ST-208
StoTherm Insulated Facade System Maxraft Floor System/Edge Detail
DWGPDF
ST-209
StoTherm Insulated Facade System Timber Pile/Subfloor Ventilation (parallel wall)
DWGPDF
ST-210
StoTherm Insulated Facade System Timber Pile/Subfloor Ventilation (right angled wall)
DWGPDF
ST-211
StoTherm Insulated Facade System Timber Subfloor With Jackstuds
DWGPDF
ST-212
StoTherm Insulated Facade System Masonry Conc. Block in Ground Wall
DWGPDF
ST-213
StoTherm Insulated Facade System Concrete Block Interstorey Drained Junction
DWGPDF



Walls Series 300

sto detail expand
ST-300-All
Walls Series 300 - Complete Set
PDF
ST-300
StoTherm Insulated Facade System StoTherm Panel Layout
DWGPDF
ST-301
StoTherm Insulated Facade System Panel Fixing Vertical
DWGPDF
ST-302
StoTherm Insulated Facade System Panel Fixing Horizontal
DWGPDF
ST-303
StoTherm Insulated Facade System External Corner
DWGPDF
ST-304
StoTherm Insulated Facade System Internal Corner
DWGPDF
ST-305
StoTherm Insulated Facade System Vertical Control Joint
DWGPDF
ST-306
StoTherm Insulated Facade System Horizontal Inter Storey
DWGPDF
ST-307
StoTherm Insulated Facade System Horizontal Inter Storey Control Joint
DWGPDF
ST-308
StoTherm Insulated Facade System Drained Junction at Third Storey
DWGPDF
ST-309
StoTherm Insulated Facade System Boxed Beam
DWGPDF
ST-310
StoTherm Insulated Facade System Post Detail
DWGPDF



Wall Penetrations & Fittings Series 350

sto detail expand
ST-350-All
Wall Penetrations & Fittings Series 350 - Complete Set
PDF
ST-350
StoTherm Insulated Facade System Pipe Penetration Detail
DWGPDF
ST-351
StoTherm Insulated Facade System Light Fitting/Fixing Detail
DWGPDF
ST-352
StoTherm Insulated Facade System Tap Fitting/Fixing Detail
DWGPDF
ST-353
StoTherm Insulated Facade System Handrail Bracket/Fixing Detail
DWGPDF
ST-354
StoTherm Insulated Facade System Meterbox - Isometric
DWGPDF
ST-355
StoTherm Insulated Facade System Meterbox - Cross Section
DWGPDF
ST-356
StoTherm Insulated Facade System Downpipe Saddle Fixing & Wiring Details
DWGPDF
ST-357
StoTherm Insulated Facade System Fan Vent Detail
DWGPDF
ST-358
StoTherm Insulated Facade System Inter-Storey Junction with Poly Profile
DWGPDF
ST-359
StoTherm Insulated Facade System Joint at Third Storey with Poly profile
DWGPDF



Joinery Series 400

sto detail expand
ST-400-All
Joinery Series 400 - Complete Set
PDF
ST-400
StoTherm Insulated Facade System Alu.Joinery - Head Detail - Stick on Jamb
DWGPDF
ST-401
StoTherm Insulated Facade System Alu.Joinery - Head Detail - Cavity Jamb
DWGPDF
ST-402
StoTherm Insulated Facade System Alu.Joinery - Sill Detail - Sto uPVC Stick on Sill
DWGPDF
ST-403
StoTherm Insulated Facade System Alu.Joinery - Jamb Detail - Sto uPVC Cavity Jamb
DWGPDF
ST-404
StoTherm Insulated Facade System Alu.Joinery - Jamb Detail - Sto uPVC Stick on Jamb
DWGPDF
ST-405
StoTherm Insulated Facade System Int.Cnr Alu.Window/Door Joinery - Jamb Detail
DWGPDF
ST-406
StoTherm Insulated Facade System Entry Door Threshold Detail
DWGPDF
ST-407
StoTherm Insulated Facade System Entry Door/Deck Threshold Detail
DWGPDF
ST-408
StoTherm Insulated Facade System Bifold Door/Threshold Detail
DWGPDF
ST-409
StoTherm Insulated Facade System Level Entry Threshold Detail
DWGPDF
ST-410
StoTherm Insulated Facade System Garage Door - Timber Head Detail
DWGPDF
ST-411
StoTherm Insulated Facade System Garage Door - Timber Jamb Detail
DWGPDF
ST-412
StoTherm Insulated Facade System Garage Door - Rendered Head Detail
DWGPDF
ST-413
StoTherm Insulated Facade System Garage Door - Rendered Jamb Detail
DWGPDF
ST-414
StoTherm Insulated Facade System Sto uPVC Head and Jamb Flashing Isometric
DWGPDF



Parapets, Balustrades, Decks Series 500

sto detail expand
ST-500-All
Parapets, Balustrades, Decks Series 500 - Complete Set
PDF
ST-500
StoTherm Insulated Facade System Parapet/Metal Flashing Detail
DWGPDF
ST-501
StoTherm Insulated Facade System Rendered Parapet/Balustrade Detail
DWGPDF
ST-502
StoTherm Insulated Facade System Parapet and/or Encl.Balustrade Wall Junction - Plan View
DWGPDF
ST-503
StoTherm Insulated Facade System Flexible Flashing Install - Isometric
DWGPDF
ST-504
StoTherm Insulated Facade System Metal Saddle Flashing & Cap Install - Isometric
DWGPDF
ST-505
StoTherm Insulated Facade System StoFlexyl Meshed Saddle Flashing Install - Isometric
DWGPDF
ST-506
StoTherm Insulated Facade System StoFlexyl Meshed Waterproofing Cap - Isometric
DWGPDF
ST-507
StoTherm Insulated Facade System Balustrade/Encl.Deck Detail
DWGPDF
ST-508
StoTherm Insulated Facade System Enclosed Deck Detail
DWGPDF
ST-509
StoTherm Insulated Facade System Cantilevered Slatted Deck
DWGPDF
ST-510
StoTherm Insulated Facade System Non Cantilevered Slatted Deck
DWGPDF
ST-511
StoTherm Insulated Facade System Timber Beam/Pergola Detail
DWGPDF
ST-512
StoTherm Insulated Facade System Parallel Deck Joist Bracket
DWGPDF
ST-513
StoTherm Insulated Facade System RWH/Scupper Opening
DWGPDF



Soffits Series 600

sto detail expand
ST-600-All
Soffits Series 600 - Complete Set
PDF
ST-600
StoTherm Insulated Facade System Flat Soffit/Wall Junction Timber Fascia
DWGPDF
ST-601
StoTherm Insulated Facade System Raking Soffit/Wall Junction Timber Fascia
DWGPDF
ST-602
StoTherm Insulated Facade System Face Fixed Timber Fascia
DWGPDF
ST-603
StoTherm Insulated Facade System Reverse Raking Soffit to wall with Flashing
DWGPDF
ST-604
StoTherm Insulated Facade System Raking Soffit - Sto uPVC Control Joint
DWGPDF
ST-605
StoTherm Insulated Facade System Soffit to Cladding Detail
DWGPDF
ST-606
StoTherm Insulated Facade System Gutter/Wall Apron Flashing Junction
DWGPDF
ST-607
StoTherm Insulated Facade System Soffit at Window/Door Head
DWGPDF
ST-608
StoTherm Insulated Facade System Metal Fascia Face Fixed Membrane Roof
DWGPDF
ST-609
StoTherm Insulated Facade System Metal Fascia Barge Detail
DWGPDF
ST-610
StoTherm Insulated Facade System Metal Fascia Face Fixed Barge Detail
DWGPDF
ST-611
StoTherm Insulated Facade System Flat Soffit/Wall Junction Metal Fascia
DWGPDF
ST-612
StoTherm Insulated Facade System Raking Soffit/Wall Junction Metal Fascia
DWGPDF
ST-613
StoTherm Insulated Facade System Face Fixed Metal Fascia
DWGPDF



Roof Series 700

sto detail expand
ST-700-All
Roof Series 700 - Complete Set
PDF
ST-700
StoTherm Construction System Apron Flashing
DWGPDF
ST-701
StoTherm Construction System Parallel Apron Flashing
DWGPDF
ST-702
StoTherm Construction System Inter-storey Transverse (Apron) Roof/Stopend
DWGPDF
ST-703
StoTherm Construction System Inter-storey Flat (Membrane) Roof Stop End Flashing
DWGPDF
ST-704
StoTherm Construction System Inter-storey Roof Stop End Flashing - PlanView
DWGPDF
ST-705
StoTherm Construction System Roof Penetration Gutter
DWGPDF
ST-706
StoTherm Construction System Roof Parallel/Hidden Gutter
DWGPDF

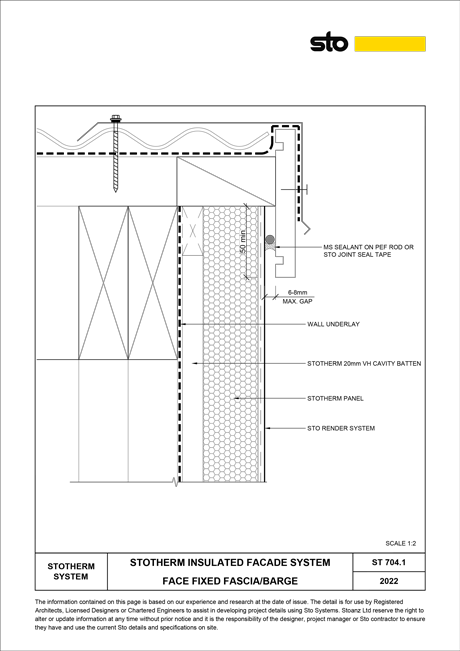

ST-707
StoTherm Construction System Face Fixed Fascia/Barge
DWGPDF
ST-708
StoTherm Construction System Face Fixed Fascia/Membrane Roof
DWGPDF
ST-709
StoTherm Construction System Roof/Wall Ridge
DWGPDF
ST-710
StoTherm Construction System Framed Chimney
DWGPDF



Dissimilar Material Series 800

sto detail expand

Weatherboard Series 800

sto detail expand
ST-800-All
Weatherboard Series 800 - Complete Set
PDF
ST-800
StoTherm Insulated Facade System Ext.Corner Weatherboard/StoTherm - Opt 1
DWGPDF

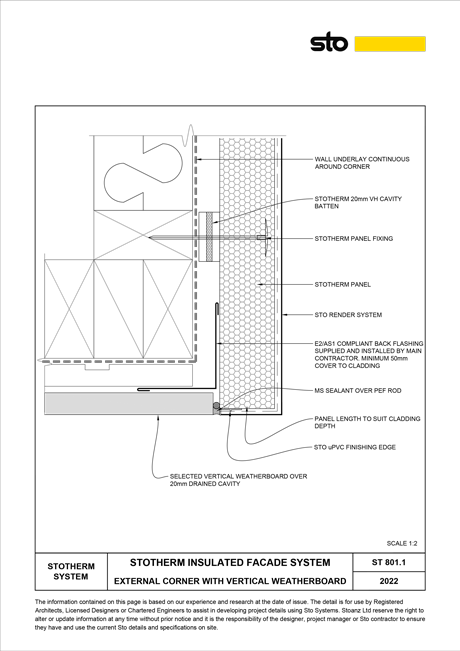

ST-801
StoTherm Insulated Facade System Ext.Corner Weatherboard/StoTherm - Opt 2
DWGPDF
ST-802
StoTherm Insulated Facade System Ext.Corner Direct Fixed Weatherboards/StoTherm
DWGPDF

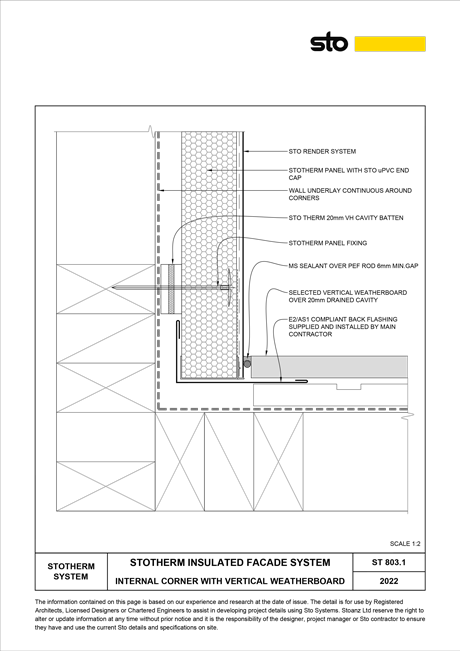

ST-803
StoTherm Insulated Facade System Int.Corner Weatherboard/StoTherm - Opt 1
DWGPDF
ST-804
StoTherm Insulated Facade System Int.Corner Weatherboard/StoTherm - Opt 2
DWGPDF
ST-805
StoTherm Insulated Facade System Int.Corner Weatherboard/StoTherm - Direct Fix
DWGPDF

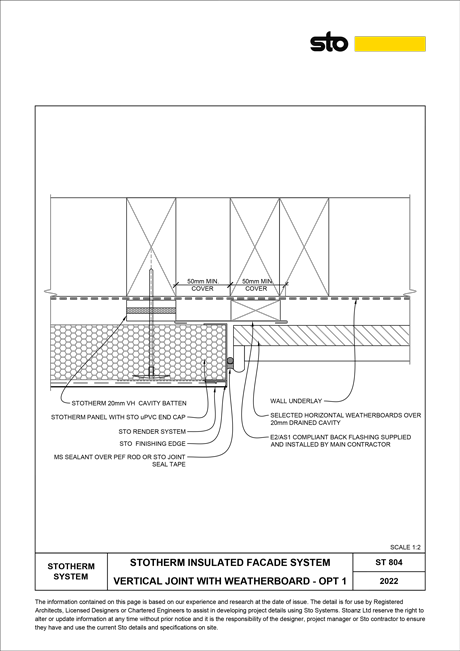

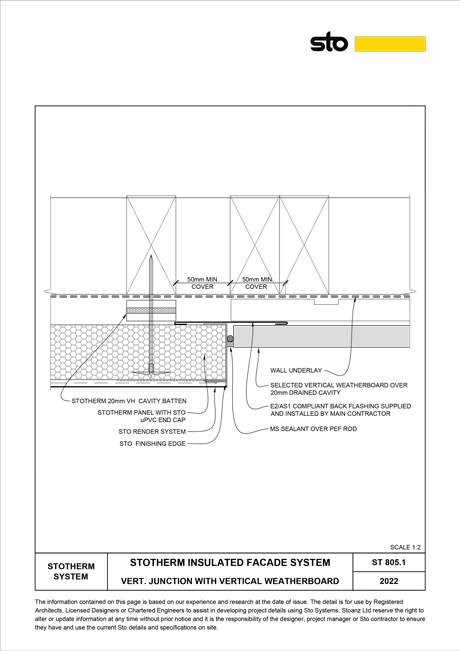

ST-806
StoTherm Insulated Facade System Vertical Joint Weatherboard/StoTherm - Opt 1
DWGPDF

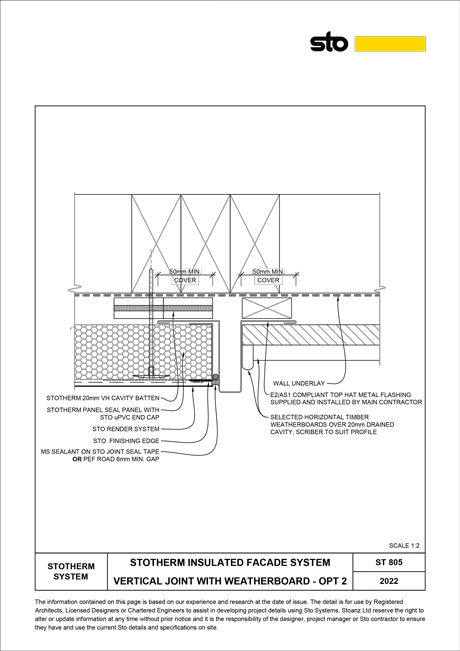

ST-807
StoTherm Insulated Facade System Vertical Joint Weatherboard/StoTherm - Opt 2
DWGPDF
ST-808
StoTherm Insulated Facade System Horizontal Junction Weatherboard/StoTherm
DWGPDF
ST-809
StoTherm Insulated Facade System Gable End Weatherboard/StoTherm
DWGPDF
ST-810.1
StoTherm Insulated Facade System Internal Corner Direct Fixed EIFS to StoTherm
DWGPDF



Brick Series 810

sto detail expand
ST-810-All
Brick Series 810 - Complete Set
PDF
ST-810
StoTherm Insulated Facade System External Corner Brick Veneer/StoTherm
DWGPDF
ST-811
StoTherm Insulated Facade System Internal Corner Brick Veneer/StoTherm - Opt 1
DWGPDF
ST-812
StoTherm Insulated Facade System Internal Corner Brick Veneer/StoTherm - Opt 2
DWGPDF
ST-813
StoTherm Insulated Facade System Vertical Junction Brick Veneer/StoTherm
DWGPDF
ST-814
StoTherm Insulated Facade System Horizontal Junction Brick Veneer/StoTherm
DWGPDF



Fibre Cement Sheet Series 820

sto detail expand
ST-820-All
Fibre Cement Sheet Series 820 - Complete Set
PDF
ST-820
StoTherm Insulated Facade System External Corner FC Sheet/ StoTherm
DWGPDF
ST-821
StoTherm Insulated Facade System Internal Corner FC Sheet/ StoTherm - Opt 1
DWGPDF
ST-822
StoTherm Insulated Facade System Internal Corner FC Sheet/ StoTherm - Opt 2
DWGPDF
ST-823
StoTherm Insulated Facade System FC Sheet - Framed Sub Floor Cladding
DWGPDF
ST-824
StoTherm Insulated Facade System FC Sheet Gable End
DWGPDF



Concrete Block Series 830

sto detail expand
ST-830-All
Concrete Block Series 830 - Complete Set
PDF
ST-830
StoTherm Insulated Facade System External Corner Concrete Block/StoTherm
DWGPDF
ST-831
StoTherm Insulated Facade System Internal Corner Concrete Block/StoTherm
DWGPDF
ST-832
StoTherm Insulated Facade System Vertical Joint Concrete Block/StoTherm
DWGPDF

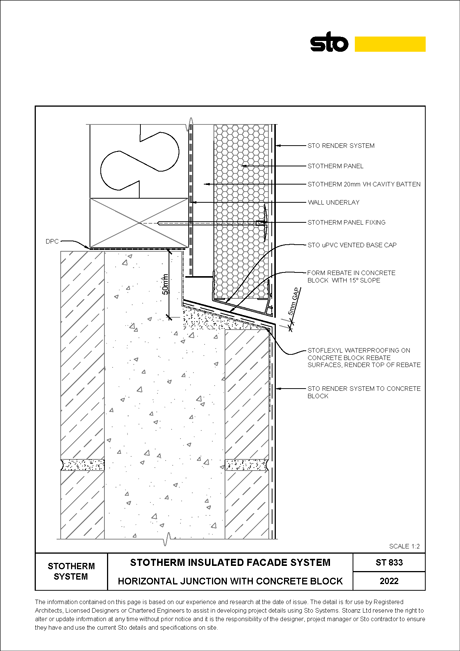

ST-833
StoTherm Insulated Facade System Horizontal Junction Concrete Block/StoTherm
DWGPDF



Manufactured Stone - Schist & Natural Stone Series 840

sto detail expand
ST-840-All
Manufactured Stone - Schist & Natural Stone Series 840 - Complete Set
PDF
ST-840
StoTherm Insulated Facade System Ext.Cnr Manuf.Stone/StoTherm - Opt 1
DWGPDF
ST-841
StoTherm Insulated Facade System Ext.Cnr Manuf.Stone/StoTherm - Opt 2
DWGPDF
ST-842
StoTherm Insulated Facade System Ext.Cnr Schist or Stone Veneer/StoTherm
DWGPDF
ST-843
StoTherm Insulated Facade System Boxed Ext.Cnr Stone Veneer/StoTherm
DWGPDF
ST-844
StoTherm Insulated Facade System Internal Cnr. Manuf.Stone/StoTherm
DWGPDF
ST-845
StoTherm Insulated Facade System Internal Cnr. Schist or Stone Veneer/StoTherm
DWGPDF
ST-846
StoTherm Insulated Facade System Vertical Junction Manuf.Stone/StoTherm
DWGPDF
ST-847
StoTherm Insulated Facade System Vertical Junction Schist or StoneVeneer/StoTherm
DWGPDF
ST-848
StoTherm Insulated Facade System Horiz.Junction Manuf.Stone/StoTherm
DWGPDF
ST-849
StoTherm Insulated Facade System Horiz.Junction Schist or StoneVeneer/StoTherm
DWGPDF



Profile Metal Series 850

sto detail expand
ST-850-All
Profile Metal Series 850 - Complete Set
PDF
ST-850
StoTherm Insulated Facade System Ext.Cnr Horiz.Profiled Metal/StoTherm
DWGPDF
ST-851
StoTherm Insulated Facade System Int.Cnr Horiz.Profiled Metal/StoTherm
DWGPDF
ST-852
StoTherm Insulated Facade System Vertical Junction Horiz.Profiled Metal/StoTherm
DWGPDF
ST-853
StoTherm Insulated Facade System Horizontal Junction Horiz.Profiled Metal/StoTherm
DWGPDF
ST-854
StoTherm Insulated Facade System External Corner Vertical Profiled Metal/StoTherm
DWGPDF
ST-855
StoTherm Insulated Facade System Internal Corner Vertical Profiled Metal/StoTherm
DWGPDF
ST-856
StoTherm Insulated Facade System Horiz.Junction Vertical Profiled Metal/StoTherm
DWGPDF



StoTherm Panel EIFS Series 860

sto detail expand
ST-860-All
StoTherm Panel EIFS Series 860 - Complete Set
PDF
ST-860
StoTherm Insulated Facade System Ext.Cnr StoPoren/StoTherm
DWGPDF
ST-861
StoTherm Insulated Facade System Int.Cnr StoPoren/StoTherm
DWGPDF
ST-862
StoTherm Insulated Facade System Vertical Joint 50mm StoPoren/StoTherm
DWGPDF
ST-863
StoTherm Insulated Facade System Vertical Joint 80mm StoPoren/StoTherm
DWGPDF
ST-864
StoTherm Insulated Facade System Inter-Storey Junction StoPoren/StoTherm
DWGPDF
ST-865
StoTherm Insulated Facade System Inter-Storey Third Storey Drained Inter-storey Junction
DWGPDF



Dissimilar Joinery Series 870

sto detail expand



FCS-870-All
Dissimilar Joinery Series 870 - Complete Series
PDF



Timber Joinery



ST-870
StoTherm Insulated Facade System Timber Window Joinery - Head Detail
DWGPDF
ST-871
StoTherm Insulated Facade System Timber Window Joinery - Sill Detail
DWGPDF
ST-872
StoTherm Insulated Facade System Timber Window Joinery - Jamb Detail
DWGPDF
ST-873
StoTherm Insulated Facade System Timber Door Joinery - Timber Floor/Threshold Detail
DWGPDF
ST-874
StoTherm Insulated Facade System Timber Door Joinery - Concrete Floor/Threshold Detail
DWGPDF



NK PVCu Joinery



ST-875
StoTherm Insulated Facade System NK PVCu - Head Detail
DWGPDF
ST-876
StoTherm Insulated Facade System NK PVCu - Sill Detail
DWGPDF
ST-877
StoTherm Insulated Facade System NK PVCu - Jamb Detail
DWGPDF



Flashman Joinery Flashing System



ST-878
StoTherm Insulated Facade System Flashman Head Flashing
DWGPDF
ST-879
StoTherm Insulated Facade System Flashman Sill Flashing
DWGPDF
ST-880
StoTherm Insulated Facade System Flashman Jamb Flashing
DWGPDF



Homerit PVC Joinery



ST-881
StoTherm Insulated Facade System Homerit PVC Joinery - Head Detail
DWGPDF
ST-882
StoTherm Insulated Facade System Homerit PVC Joinery - Sill Detail
DWGPDF
ST-883
StoTherm Insulated Facade System Homerit PVC Joinery - Jamb Detail
DWGPDF



Rusticated Weatherboard Series 890

sto detail expand
ST-890-All
Rusticated Weatherboard Series 890 - Complete Set
PDF
ST-890
StoTherm Insulated Facade System Ext.Corner Rusticated Weatherboard/StTherm - Opt 1
DWGPDF
ST-891
StoTherm Insulated Facade System Ext.Corner Rusticated Weatherboard/StoTherm - Opt 2
DWGPDF
ST-892
StoTherm Insulated Facade System Ext.Corner Direct Fixed Rusticated Weatherboards/StoTherm
DWGPDF
ST-893
StoTherm Insulated Facade System Int.Corner Rusticated Weatherboard/StoTherm - Opt 1
DWGPDF
ST-894
StoTherm Insulated Facade System Int.Corner Rusticated Weatherboard/StoTherm - Opt 2
DWGPDF
ST-895
StoTherm Insulated Facade System Int.Corner Direct Fixed Rusticated Weatherboard/StoTherm
DWGPDF
ST-896
StoTherm Insulated Facade System Vertical Joint Rusticated Weatherboard/StoTherm - Opt 1
DWGPDF
ST-897
StoTherm Insulated Facade System Vertical Joint Rusticated Weatherboard/StoTherm - Opt 2
DWGPDF
ST-898
StoTherm Insulated Facade System Horizontal Junction Rusticated Weatherboard/StoTherm
DWGPDF
ST-899
StoTherm Insulated Facade System Gable End Rusticated Weatherboard/StoTherm
DWGPDF





Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated April 2018
