StoLite Stucco System


A Lightweight Stucco Cavity System on Fibre Cement Sheet



Overview

The StoLite System is a lightweight Stucco on backing board which offers a proprietary system to clad timber framed construction. By selecting the appropriate fibre cement sheet, the strength, bracing and acoustic properties of the exterior can be adjusted to meet the site conditions. A cavity allows for a dry zone between the interior and exterior claddings with the backing board coated in a Sto Render System of your choice.








Brochure

Brochure
StoLite Stucco System
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Sto Lite System Image 1 Sto Lite System on Backerboard Image 3 Sto Lite System Image 2 Sto Lite System on Backerboard Image 3



Sto Lite System on Backerboard Image 4 Sto Lite System on Backerboard Image 5 Sto Lite System on Backerboard Image 6 Sto Lite System on Backerboard Image 7
Sto Lite System on Backerboard Image 8 Sto Lite System on Backerboard Image 9 Sto Lite System on Backerboard Image 10 Sto Lite System on Backerboard Image 11
Sto Lite System on Backerboard Image 12



Click here to hide images.












StoLite Stucco System

A BRANZ appraised high performance system to provide exceptional crack resistance and weather protection. The fibre cement sheet backing board includes a basecoat render to straighten any irregularities. Followed by StoArmat render and glass fibre mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.











StoLite Stucco Construction System
Click on each of the layers below to view the components of the system.





Component Builder lite_stucco_system_110 lite_stucco_system_120 lite_stucco_system_130 lite_stucco_system_140 lite_stucco_system_131 lite_stucco_system_150 lite_stucco_system_160



01

Substrate: Fibre Cement Sheet

A range of different thicknesses – 6.0, 7.5 and 9.0mm as specified. Installed by a third party LBP contractor or main contractor as specified by NZBC requirements.



02

Basecoat: StoLevell Novo / LevelLite Mineral Render

Lightweight EPS bead mineral render (plaster) with good build properties, water retention agents and machine application properties.



levellite



03

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



04

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



05

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



06

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 468

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint






TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF



Reinforcement Mesh:



TDS
Sto Glass Fibre Mesh 4mm
PDF
TDS
Sto Glass Fibre Mesh 7mm
PDF



Reinforcement Render / Base Render:



TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
LevelLite Mineral Render
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download an Editable Specification

Please register all completed Sto specifications to info@sto.co.nz to ensure project confirmation and Sto warranty.



SS-303
StoLite Stucco on Fibre Cement Sheet
PDF
SS-303
StoLite Stucco on Reclad Construction
PDF
MasterSpec
4281SL - Sto Stucco Cladding System
Specification Icon



Download a BRANZ Appraisal



BRANZ Appraisal
468 - StoLite Stucco Construction System
Branz Appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



SL-ALL
StoLite Construction System - Complete Detail Set (4.8mb)
PDF





Download an Individual Detail



Drawing Register and Introduction Series 000

sto detail expand
SL-000-All
Introduction Series 000 - Complete Set
PDF
SL-001-5
StoLite Construction System Drawing Register
DWGPDF
SL-006
StoLite Construction System Introduction
DWGPDF
SL-007
StoLite Construction System Fibre Cement Sheet Information
DWGPDF
SL-008
StoLite Construction System Sheet Layout
DWGPDF



Panel Layout Series 100

sto detail expand
SL-100-All
Panel Layout Series 100 - Complete Set
PDF
SL-100
StoLite Construction System Cavity Batten Setout (600 ctrs) - Isometric
DWGPDF
SL-101
StoLite Construction System Cavity Batten Setout (400 ctrs) - Isometric
DWGPDF
SL-102
StoLite Construction System Cavity Batten Setout Steel Frame/Thermal Break (600 ctrs)
DWGPDF
SL-103
StoLite Construction System Cavity Batten Setout (300 & 600 ctrs) Elevation
DWGPDF



Foundation Series 200

sto detail expand
SL-200-All
Foundation Series 200 - Complete Set
PDF
SL-200

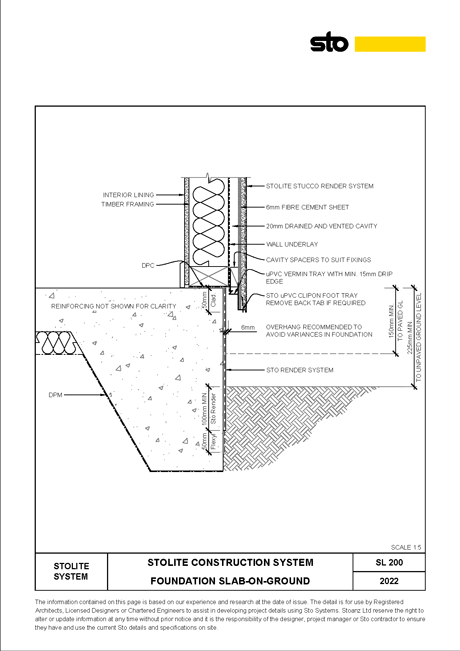

StoLite Construction System Foundation Slab-on-ground
DWGPDF
SL-201
StoLite Construction System Insulated Slab-on-Ground
DWGPDF
SL-202
StoLite Construction System Rebated Slab-on-Ground - Render Finish
DWGPDF
SL-203
StoLite Construction System ESP Block Foundation Detail
DWGPDF
SL-204
StoLite Construction System Conc. Block Foundation Edge Detail
DWGPDF
SL-205
StoLite Construction System Solid Conc. Foundation Edge Detail
DWGPDF
SL-206
StoLite Construction System Conc.Continuous Perimeter Found.Wall
DWGPDF
SL-207
StoLite Construction System Timber Pile/Subfloor Ventilation (Parallel Wall)
DWGPDF
SL-208
StoLite Construction System Timber Pile/Subfloor Ventilation (Right Angled Wall)
DWGPDF
SL-209
StoLite Construction System Timber Subfloor with Jack Studs
DWGPDF
SL-210
StoLite Construction System Masonry Conc.Block in-ground Wall
DWGPDF
SL-211
StoLite Construction System Ribraft Floor System / Edge Detail
DWGPDF
SL-212
StoLite Construction System Maxraft Floor System / Edge Detail
DWGPDF



Walls Series 300

sto detail expand
SL-300-All
Walls Series 300 - Complete Set
PDF
SL-300
StoLite Construction System Sheet layout
DWGPDF
SL-301
StoLite Construction System Cross Section
DWGPDF
SL-302
StoLite Construction System External Corner
DWGPDF
SL-303
StoLite Construction System Internal Corner
DWGPDF
SL-304
StoLite Construction System Vertical Control Joint
DWGPDF
SL-305
StoLite Construction System Horizontal inter-storey Control Joint
DWGPDF
SL-306
StoLite Construction System Drained Joint at Third Storey
DWGPDF
SL-307
StoLite Construction System Boxed Beam
DWGPDF
SL-308

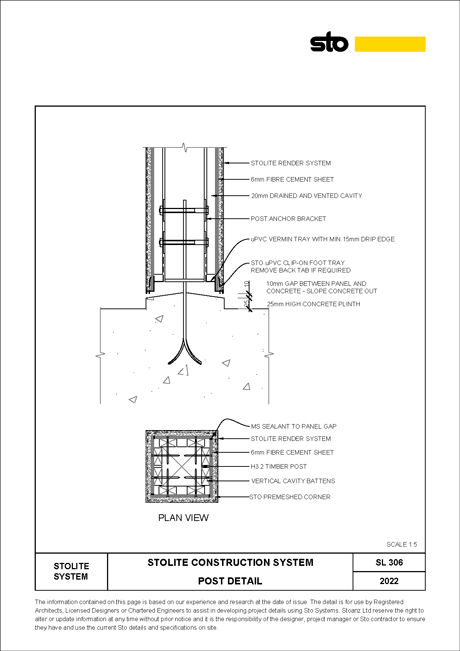

StoLite Construction System Post Detail
DWGPDF



Wall Penetrations & Fittings Series 350

sto detail expand
SL-350-All
Wall Penetrations & Fittings Series 350 - Complete Set
PDF
SL-350
StoLite Construction System Pipe Penetration Detail
DWGPDF
SL-351
StoLite Construction System Light Fitting/Fixing Detail
DWGPDF
SL-352
StoLite Construction System Tap Fitting/Fixing Detail
DWGPDF
SL-353
StoLite Construction System Handrail Bracket/Fixing Detail
DWGPDF
SL-354

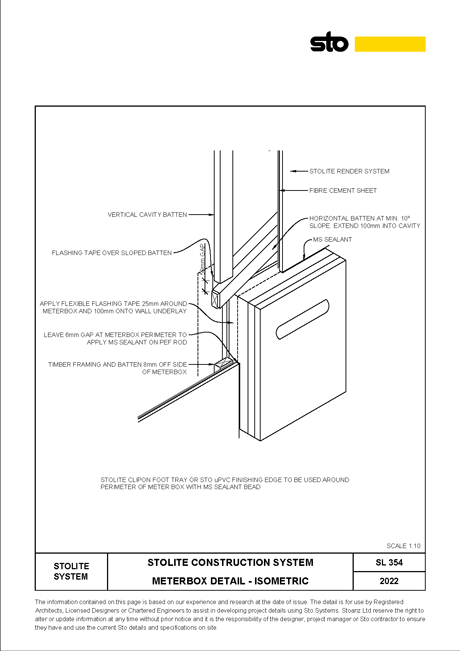

StoLite Construction System Meterbox - Isometric
DWGPDF
SL-355
StoLite Construction System Meterbox - Cross Section
DWGPDF
SL-356
StoLite Construction System Downpipe Saddle Fixing & Wiring Details
DWGPDF
SL-357
StoLite Construction System Fan Vent Detail
DWGPDF
SL-358
StoLite Construction System Inter-Storey Junction with Poly Profile
DWGPDF
SL-359
StoLite Construction System Joint at Third Storey with Poly profile
DWGPDF



Joinery Series 400

sto detail expand
SL-400-All
Joinery Series 400 - Complete Set
PDF
SL-400
StoLite Construction System Alu.Joinery - Head Detail
DWGPDF
SL-401
StoLite Construction System Alu.Joinery - Sill Detail
DWGPDF
SL-402
StoLite Construction System Alu.Joinery - Jamb Detail
DWGPDF
SL-403
StoLite Construction System Int.Cnr Alu.Window/Door Joinery Jamb Detail
DWGPDF
SL-404
StoLite Construction System Entry Door Threshold Detail
DWGPDF
SL-405
StoLite Construction System Entry Door/Deck Threshold Detail
DWGPDF
SL-406
StoLite Construction System Bifold Door/Threshold Detail
DWGPDF
SL-407
StoLite Construction System Level Entry Threshold Detail
DWGPDF
SL-408
StoLite Construction System Garage Door - Timber Head
DWGPDF
SL-409
StoLite Construction System Garage Door - Timber Jamb
DWGPDF
SL-410
StoLite Construction System Garage Door - Rendered Head Detail
DWGPDF
SL-411
StoLite Construction System Garage Door - Rendered Jamb Detail
DWGPDF



Parapets, Balustrades, Decks Series 500

sto detail expand
SL-500-All
Parapets, Balustrades, Decks Series 500 - Complete Set
PDF
SL-500
StoLite Construction System Parapet/Metal Flashing Detail
DWGPDF
SL-501
StoLite Construction System Rendered Parapet Balustrade Detail
DWGPDF
SL-502
StoLite Construction System Parapet and/or Encl.Balustrade Wall Junction - Plan View
DWGPDF
SL-503
StoLite Construction System Flexible Flashing Install - Isometric
DWGPDF
SL-504
StoLite Construction System Metal Saddle Flashing & Cap Install - Isometric
DWGPDF
SL-505
StoLite Construction System StoFlexyl Meshed Saddle Flashing Install - Isometric
DWGPDF
SL-506
StoLite Construction System StoFlexyl Meshed Waterproofing Cap - Isometric
DWGPDF
SL-507
StoLite Construction System Balustrade/Enclosed Deck Detail
DWGPDF
SL-508
StoLite Construction System Enclosed Deck Cross Section
DWGPDF
SL-509
StoLite Construction System Cantilevered Slatted Deck
DWGPDF
SL-510
StoLite Construction System Non Cantilevered Slatted Deck
DWGPDF
SL-511
StoLite Construction System Independent Slatted Deck
DWGPDF
SL-512
StoLite Construction System Timber Beam / Pergola Detail
DWGPDF
SL-513
StoLite Construction System RWH/Scupper Opening
DWGPDF



Soffits Series 600

sto detail expand
SL-600-All
Soffits Series 600 - Complete Set
PDF
SL-600
StoLite Construction System Flat Soffit/Wall Junction
DWGPDF
SL-601
StoLite Construction System Raking Soffit/Wall Junction
DWGPDF
SL-602
StoLite Construction System Face Fixed Fascia
DWGPDF
SL-603
StoLite Construction System Raking Soffit (Reversed)
DWGPDF
SL-604
StoLite Construction System Raking Soffit - Sto uPVC Control Joint
DWGPDF
SL-605
StoLite Construction System Soffit to Cladding Detail
DWGPDF
SL-606
StoLite Construction System Gutter/Wall Junction
DWGPDF
SL-607
StoLite Construction System Soffit at Window/Door Head
DWGPDF



Roof Series 700

sto detail expand
SL-700-All
Roof Series 700 - Complete Set
PDF
SL-700
StoLite Construction System Apron Flashing
DWGPDF
SL-701
StoLite Construction System Parallel Apron Flashing
DWGPDF
SL-702
StoLite Construction System Inter-storey Transverse (Apron) Roof/Stopend Flashing
DWGPDF
SL-703
StoLite Construction System Inter-storey Flat (Membrane) Roof/Stopend Flashing
DWGPDF
SL-704
StoLite Construction System Inter-storey Roof Stop End Flashing - PlanView
DWGPDF
SL-705
StoLite Construction System Roof Penetration Gutter
DWGPDF
SL-706
StoLite Construction System Roof Parallel/Hidden Gutter
DWGPDF
SL-707
StoLite Construction System Face Fixed Fascia/Barge
DWGPDF
SL-708
StoLite Construction System Face Fixed Fascia/Membrane Roof
DWGPDF
SL-709
StoLite Construction System Roof/Wall Ridge
DWGPDF
SL-710
StoLite Construction System Framed Chimney or Penetration upto 1200mm
DWGPDF



Dissimilar Material Series 800

sto detail expand

Weatherboard Series 800

sto detail expand
SL-800-All
Weatherboard Series 800 - Complete Set
PDF
SL-800
StoLite Construction System Ext.Corner Weatherboard/StoLite - Opt 1
DWGPDF
SL-800-1
StoLite Construction System Ext.Corner Weatherboard/StoLite - Opt 2
DWGPDF
SL-801
StoLite Construction System Ext.Corner Weatherboard/StoLite - Direct Fix
DWGPDF
SL-802
StoLite Construction System Int.Corner Weatherboard/StoLite - Opt 1
DWGPDF
SL-802-1
StoLite Construction System Int.Corner Weatherboard/StoLite - Opt 2
DWGPDF
SL-803
StoLite Construction System Int.Corner Weatherboard/StoLite - Direct Fix
DWGPDF
SL-804
StoLite Construction System Vertical Joint Flashing Weatherboard/StoLite - Opt 1
DWGPDF
SL-804-1
StoLite Construction System Vertical Joint Flashing Weatherboard/StoLite - Opt 2
DWGPDF
SL-804-2
StoLite Construction System Vertical Joint Flashing Weatherboard/StoLite - Opt 3
DWGPDF
SL-805
StoLite Construction System Horizontal Junction Weatherboard/StoLite
DWGPDF
SL-806
StoLite Construction System Gable End Weatherboard/StoLite
DWGPDF



Brick Series 810

sto detail expand
SL-810-All
Brick Series 810 - Complete Set
PDF
SL-810
StoLite Construction System External Corner Brick Veneer/Stolite
DWGPDF
SL-811
StoLite Construction System Internal Corner Brick Veneer/Stolite - Opt 1
DWGPDF
SL-812
StoLite Construction System Internal Corner Brick Veneer/Stolite - Opt 2
DWGPDF
SL-813
StoLite Construction System Interstorey Junction Brick Veneer/StoLite
DWGPDF



Fibre Cement Sheet Series 820 series not issued

Concrete Block Series 830

sto detail expand
SL-830-All
Concrete Block Series 830 - Complete Set
PDF
SL-830
StoLite Construction System External Corner Concrete Block/Stolite
DWGPDF
SL-831
StoLite Construction System Internal Corner Concrete Block/Stolite
DWGPDF
SL-832
StoLite Construction System Vertical Joint Concrete Block/Stolite
DWGPDF
SL-833
StoLite Construction System Horizontal Junction Concrete Block/Stolite
DWGPDF



Manufactured Stone - Schist & Natural Stone Series 840

sto detail expand
SL-840-All
Manufactured Stone - Schist & Natural Stone Series 840 - Complete Set
PDF
SL-840
StoLite Construction System Ext.Cnr Manuf. Stone/StoLite
DWGPDF
SL-841
StoLite Construction System Boxed Ext. Cnr Stone Veneer/StoLite
DWGPDF
SL-842
StoLite Construction System Int. Cnr Manuf. Stone/StoLite
DWGPDF
SL-843
StoLite Construction System Vertical Junction Manuf. Stone/StoLite
DWGPDF
SL-844
StoLite Construction System Ext. Cnr Schist or Stone Veneer/StoLite
DWGPDF
SL-845
StoLite Construction System Int. Cnr Schist or Stone Veneer/StoLite
DWGPDF
SL-846
StoLite Construction System Vertical Junction Schist or StoneVeneer/StoLite
DWGPDF
SL-847
StoLite Construction System Horiz. Junction Schist or StoneVeneer/StoLite
DWGPDF



Profile Metal Series 850

sto detail expand
SL-850-All
Profile Metal Series 850 - Complete Set
PDF
SL-850
StoLite Construction System Ext. Cnr Horiz. Profiled Metal/StoLite
DWGPDF
SL-851
StoLite Construction System Int. Cnr Horiz. Profiled Metal/StoLite
DWGPDF
SL-852
StoLite Construction System Vertical Junction Horiz. Profiled Metal/StoLite
DWGPDF
SL-853
StoLite Construction System Horizontal Junction Horiz. Profiled Metal/StoLite
DWGPDF
SL-854
StoLite Construction System External Corner Vertical Profiled Metal/StoLite
DWGPDF
SL-855
StoLite Construction System Internal Corner Vertical Profiled Metal/StoLite
DWGPDF
SL-856
StoLite Construction System Horiz. Junction Vertical Profiled Metal/StoLite
DWGPDF



StoTherm Panel EIFS Series 860

sto detail expand
SL-860
StoTherm Panel EIFS Series 860 - Complete Set
PDF
SL-860
StoLite Construction System Ext. Cnr StoTherm/StoLite
DWGPDF
SL-861
StoLite Construction System Int. Cnr StoTherm/StoLite
DWGPDF
SL-862
StoLite Construction System Vertical Joint StoTherm/StoLite
DWGPDF



Dissimilar Joinery Series 870

sto detail expand



SL-870-All
Dissimilar Joinery Series 870 - Complete Series
PDF



Timber Joinery



SL-870
StoLite Construction System Timber Window Joinery - Head Detail
DWGPDF
SL-871
StoLite Construction System Timber Window Joinery - Sill Detail
DWGPDF
SL-872
StoLite Construction System Timber Window Joinery - Jamb Detail
DWGPDF
SL-873
StoLite Construction System Timber Joinery - Timber Floor/Threshold Detail
DWGPDF
SL-874
StoLite Construction System Timber Joinery - Concrete Floor/Threshold Detail
DWGPDF



NK PVCu Joinery



SL-875
StoLite Construction System NK PVCu - Head Detail
DWGPDF
SL-876
StoLite Construction System NK PVCu - Sill Detail
DWGPDF
SL-877
StoLite Construction System NK PVCu - Jamb Detail
DWGPDF



Flashman Joinery Flashing System



SL-878
StoLite Construction System Flashman Head Flashing
DWGPDF
SL-879
StoLite Construction System Flashman Sill Flashing
DWGPDF
SL-880
StoLite Construction System Flashman Jamb Flashing
DWGPDF



Homerit PVC Joinery



SL-881
StoLite Construction System Homerit PVC Joinery - Head Detail
DWGPDF
SL-882
StoLite Construction System Homerit PVC Joinery - Sill Detail
DWGPDF
SL-883
StoLite Construction System Homerit PVC Joinery - Jamb Detail
DWGPDF





Moldings and Shapes

sto detail expand

Refer to - www.accumen.co.nz
Lightweight exterior decorative moldings and shapes, including columns, architraves, cornices, window sills, fence caps, quoins that can be finished in Stolit K or MP sponge coloured finishing render.



Note: Decorative mouldings require min.10° FCSope to top surface and a drip edge.



Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated April 2018
