StoStucco Render System


Stainless Steel Lath on Timber Frame Construction



Overview

Stucco, an outstanding solution with a reinforced backing, dates back to pre biblical times using saplings and an application of clay plasters to decorate and protect buildings.



Embracing this concept by using the latest render technology and European components, Sto has released StoStucco, a render system on a rigid stainless steel lath. This compliant system meets the requirements of the New Zealand building code for architects and designers. Following traditional practices the StoStucco System is a guaranteed solution to cover timber framed construction and allows the designer an opportunity to bend the rules when designing residential or commercial construction property.










Brochure

Brochure
StoStucco Render System Brochure
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF

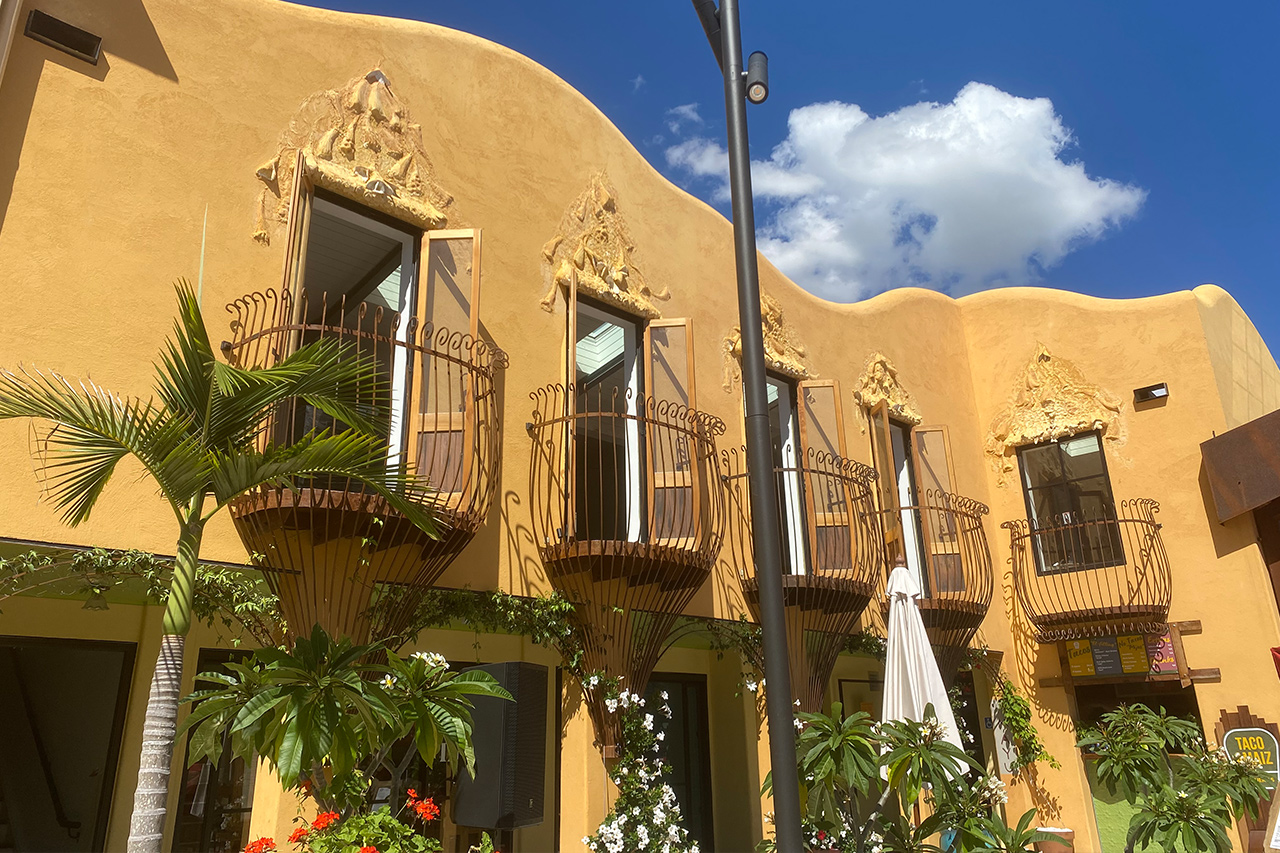

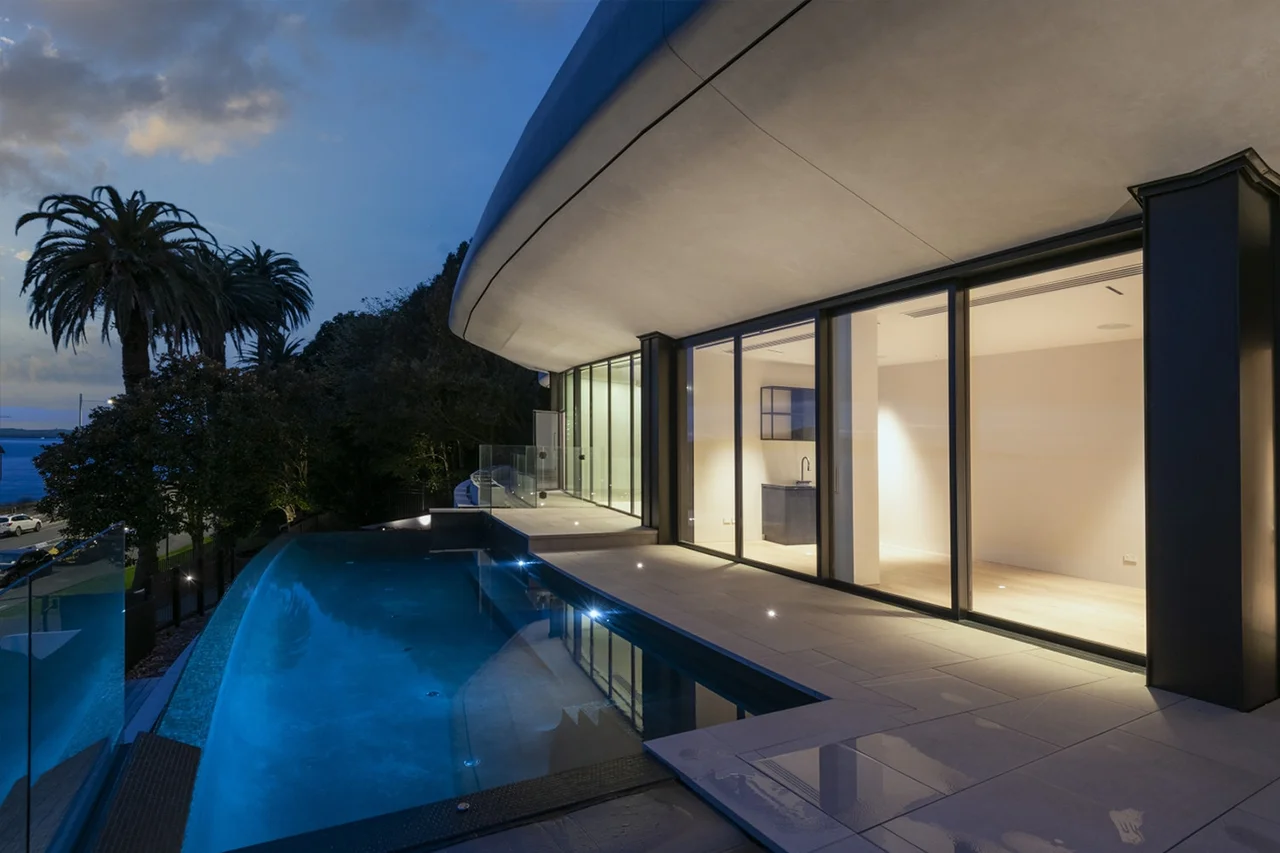

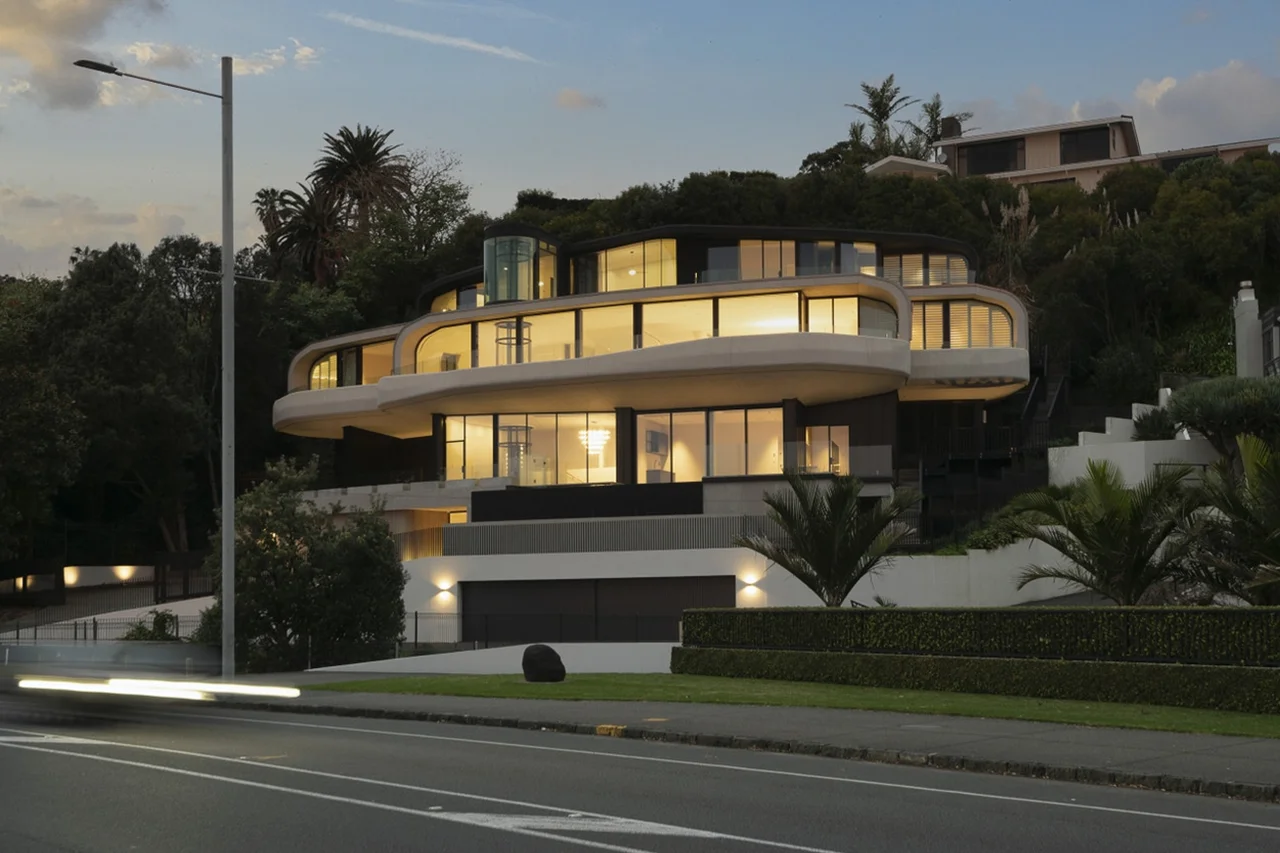

Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Glennelg Spur Christchurch StoStucco Plaster System Image 2 StoStucco Plaster System Image 3 StoStucco Plaster System Image 5



StoStucco Plaster System Image 6 StoStucco Plaster System Image 4 StoStucco Plaster System Image 5 StoStucco Plaster System Image 7
StoStucco Plaster System Image 8 StoStucco Plaster System Image 8 StoStucco Plaster System Image 8 StoStucco Plaster System Image 8
StoStucco Plaster System Image 5 StoStucco Plaster System Image 7 StoStucco Plaster System Image 8
StoStucco Plaster System Image 1 StoStucco Plaster System Image 2 StoStucco Plaster System Image 5 StoStucco Plaster System Image 7



Click here to hide images.












StoStucco Lath

Manufactured in Europe, the StoStucco lath is made from a stainless steel welded wire mesh with an absorbent sheet of perforated chip paper, fixed over timber battens to form a dry-cavity. The StoStucco lath provides an extremely strong yet flexible base for the render system to interlock with and can be moulded to suit the shape and curvature in any building, creating unlimited design possibilities.





StoStucco Lath

Benefits

  • Unlimited design possibilities due to the flexible lath.

  • High durability and impact resistance.

  • Highly resistant to mechanical stress.

  • Dry-cavity design.

  • Faceload tested to 6.5 kPa.

  • Seismic racking tested.

  • ISO 5660 fire tested.

  • Wind pressure to 4.9 kPa 69m/sec.

  • For residential & commercial applications.












StoStucco Render System

StoStucco is a BRANZ appraised render system based on the traditional New Zealand stucco net system. The StoStucco lath with perforations of the chip paper allow an optimal key of the lightweight mineral basecoat to sit around the stainless steel wires, providing a solid render base. UPVC flashings lock into the junctions and joinery providing a neat junction ready for a weathertight sealant. The cement free StoArmat, combined with a glass fibre mesh provides engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoStucco Render System
Click on each of the layers below to view the components of the system.





Component Builder stucco_system_110 stucco_system_120 stucco_system_130 stucco_system_140 stucco_system_150 stucco_system_141 stucco_system_160 stucco_system_170



01

Timber Battens

25 mm rough sawn timber battens.



02

Substrate: Stainless steel lath

European manufactured and certified lath, which is light and strong, easy to shape and to install.



03

Basecoat: StoLevell Novo / LevelLite Mineral Render

Lightweight EPS bead mineral render (plaster) with good build properties, water retention agents and machine application properties.



levellite



04

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



05

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



06

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



07

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 605

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assurance








Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured fine float, sponge, or light adobe finish renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint






TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF



Reinforcement Mesh:



TDS
StoMesh 4mm
PDF
TDS
StoMesh 7mm
PDF



Reinforcement Render / Base Render:



TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
LevelLite Mineral Render
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification



SS-808
StoStucco Building System
PDF
SS-808R
StoStucco Re Clad System
PDF
SS-806
StoStucco Roughcast System
PDF



Download a BRANZ Appraisal



BRANZ Appraisal
StoStucco Render System - 605
Branz Appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



SS-ALL
StoStucco - Complete Detail Set (4.2mb)
PDF





Download an Individual Detail

Drawing Register and Introduction Series 000



SS-001-4
Drawing Register
DWGPDF
SS-005
StoStucco Construction System Introduction
DWGPDF
SS-006
StoStucco Construction System Stainless Steel Lath Set Up
DWGPDF
SS-007
StoStucco Construction System Stainless Steel Lath Sheet Information
DWGPDF
SS-008
StoStucco Construction System Sheet Layout
DWGPDF



Panel Layout Series 100



SS-100
StoStucco Construction System Cavity Batten Setout (600 ctrs) - Isometric
DWGPDF
SS-101
StoStucco Construction System Cavity Batten Setout (400 ctrs) - Isometric
DWGPDF
SS-102
StoStucco Construction System Cavity Batten Setout (300 & 600 ctrs) Elevation
DWGPDF



Foundation Series 200



SS-200
StoStucco Construction System Foundation Slab-on-ground
DWGPDF
SS-201
StoStucco Construction System Conc.Block Foundation Edge Detail
DWGPDF
SS-202
StoStucco Construction System Solid Conc.Foundation Edge Detail
DWGPDF
SS-203
StoStucco Construction System Conc.Continuous Perimeter Found.Wall
DWGPDF
SS-204
StoStucco Construction System Rebated Foundation Slab-on-ground
DWGPDF
SS-205
StoStucco Construction System Ribraft Floor System / Edge Detail
DWGPDF
SS-206
StoStucco Construction System Maxraft Floor System / Edge Detail
DWGPDF



Walls Series 300



SS-300
StoStucco Construction System External Corner
DWGPDF
SS-301
StoStucco Construction System Internal Corner
DWGPDF
SS-302
StoStucco Construction System Vertical Control Joint
DWGPDF
SS-303
StoStucco Construction System Horizontal Junction - non draining
DWGPDF
SS-304
StoStucco Construction System Horizontal Junction - draining
DWGPDF



Wall Penetrations & Fittings Series 350



SS-350
StoStucco Construction System Pipe Penetration (up to 100mm) Detail
DWGPDF
SS-351
StoStucco Construction System Light Fitting/Fixing Detail
DWGPDF
SS-352
StoStucco Construction System Tap Fitting/Fixing Detail
DWGPDF
SS-353
StoStucco Construction System Handrail Bracket/Fixing Detail
DWGPDF
SS-354
StoStucco Construction System Meterbox - Cross Section
DWGPDF
SS-355
StoStucco Construction System Downpipe Saddle Fixing & Wiring Details
DWGPDF
SS-356
StoStucco Construction System Vent Detail
DWGPDF



Joinery Series 400



SS-400
StoStucco Construction System Alu.Joinery Head Detail
DWGPDF
SS-401
StoStucco Construction System Alu.Joinery Sill Detail - Opt 1
DWGPDF
SS-402
StoStucco Construction System Alu.Joinery Sill Detail - Opt 2
DWGPDF
SS-403
StoStucco Construction System Alu.Joinery Jamb Detail
DWGPDF
SS-404
StoStucco Construction System Int.Cnr Alu.Window.Door Joinery Detail
DWGPDF
SS-405
StoStucco Construction System uPVC Head & Jamb Flashing - Isometric
DWGPDF
SS-406
StoStucco Construction System Entry Door Head Detail
DWGPDF
SS-407
StoStucco Construction System Entry Door Threshold Detail
DWGPDF
SS-408
StoStucco Construction System Entry Door Jamb Detail
DWGPDF
SS-409
StoStucco Construction System Sliding Door Head Detail
DWGPDF
SS-410
StoStucco Construction System Sliding Door Threshold Detail - Concrete Floor
DWGPDF
SS-411
StoStucco Construction System Sliding Door Threshold Detail - Timber Floor
DWGPDF
SS-412
StoStucco Construction System Sliding Door Jamb Detail
DWGPDF
SS-413
StoStucco Construction System Bifold Door Head Detail
DWGPDF
SS-414
StoStucco Construction System Bifold Door Threshold Detail - Concrete Floor
DWGPDF
SS-415
StoStucco Construction System Bifold Door Threshold Detail - Timber Floor
DWGPDF
SS-416
StoStucco Construction System Bifold Door Jamb Detail
DWGPDF
SS-417
StoStucco Construction System Level Entry Threshold Detail
DWGPDF
SS-418
StoStucco Construction System Garage Door - Timber Head Detail
DWGPDF
SS-419
StoStucco Construction System Garage Door - Timber Jamb Detail
DWGPDF
SS-420
StoStucco Construction System Garage Door - Plastered Head Detail
DWGPDF
SS-421
StoStucco Construction System Garage Door - Plastered Jamb Detail
DWGPDF



Parapets, Balustrades, Decks Series 500



SS-500
StoStucco Construction System Parapet/Metal Flashing Detail
DWGPDF
SS-501
StoStucco Construction System Plastered Parapet/Balustrade Detail
DWGPDF
SS-502
StoStucco Construction System Parapet and/or Balustrade Wall Junction - Plan View
DWGPDF
SS-503
StoStucco Construction System Flexible Flashing Install - Isometric
DWGPDF
SS-504
StoStucco Construction System Metal Saddle Flashing & Cap Install - Isometric
DWGPDF
SS-505
StoStucco Construction System StoFlexyl Meshed Saddle Flashing Install - Isometric
DWGPDF
SS-506
StoStucco Construction System StoFlexyl Meshed Waterproofing Cap Install - Isometric
DWGPDF
SS-507
StoStucco Construction System Balustrade/Encl.Deck Detail
DWGPDF
SS-508
StoStucco Construction System Enclosed Deck Cross Section
DWGPDF
SS-509
StoStucco Construction System Cantilevered Slatted Deck
DWGPDF
SS-510
StoStucco Construction System Non Cantilevered Slatted Deck
DWGPDF
SS-511
StoStucco Construction System Independent Slatted Deck
DWGPDF
SS-512
StoStucco Construction System Timber Beam / Pergola Detail
DWGPDF
SS-513
StoStucco Construction System RWH/Scupper Opening
DWGPDF



Soffit Series 600



SS-600
StoStucco Construction System Flat Soffit/Wall Junction
DWGPDF
SS-601
StoStucco Construction System Raking Soffit/Wall Junction
DWGPDF
SS-602
StoStucco Construction System Face Fixed Fascia
DWGPDF
SS-603
StoStucco Construction System Raking Soffit
DWGPDF
SS-604
StoStucco Construction System Raking Soffit - Sto uPVC Control Joint
DWGPDF
SS-605
StoStucco Construction System Soffit to Cladding Detail
DWGPDF
SS-606
StoStucco Construction System Gutter/Wall Junction
DWGPDF
SS-607
StoStucco Construction System Soffit at Window/Door Head
DWGPDF



Roof Series 700



SS-700
StoStucco Construction System Apron Flashing
DWGPDF
SS-701
StoStucco Construction System Parallel Apron Flashing
DWGPDF
SS-702
StoStucco Construction System Inter-storey Transverse (Apron) Roof/Stopend
DWGPDF
SS-703
StoStucco Construction System Inter-storey Flat (Membrane) Roof/Stopend Flashing
DWGPDF
SS-704
StoStucco Construction System Inter-storey Roof Stopend Flashing - PlanView
DWGPDF
SS-705
StoStucco Construction System Roof Penetration Gutter (Masonry Tile) Detail
DWGPDF
SS-706
StoStucco Construction System Roof Parallel Roof/Hidden Gutter
DWGPDF
SS-707
StoStucco Construction System Face Fixed Fascia/Barge
DWGPDF
SS-708
StoStucco Construction System Face Fixed Fascia/Membrane Roof
DWGPDF
SS-709
StoStucco Construction System Roof/Wall Ridge
DWGPDF
SS-710
StoStucco Construction System Framed Chimney
DWGPDF



Dissimilar Material

Weatherboard Series 800



SS-800
StoStucco Construction System Ext.Corner Weatherboard/StoStucco - Opt 1
DWGPDF
SS-801
StoStucco Construction System Ext.Corner Weatherboard/StoStucco - Opt 2
DWGPDF
SS-802
StoStucco Construction System Ext.Corner Weatherboard/StoStucco - Direct Fix
DWGPDF
SS-803
StoStucco Construction System Int.Corner Weatherboard/StoStucco
DWGPDF
SS-804
StoStucco Construction System Int.Corner Weatherboard/StoStucco - Direct Fix
DWGPDF
SS-805
StoStucco Construction System Vertical Joint Flashing Weatherboard/Stostucco
DWGPDF
SS-806
StoStucco Construction System Horizontal Junction Weatherboard/StoStucco
DWGPDF
SS-807
StoStucco Construction System Gable End Weatherboard/StoStucco
DWGPDF



Brick Series 810



SS-810
StoStucco Construction System External Corner Brick Veneer/StoStucco
DWGPDF
SS-811
StoStucco Construction System Internal Corner Brick Veneer/StoStucco - Opt 1
DWGPDF
SS-812
StoStucco Construction System Inter-Storey Junction Brick Veneer/StoStucco
DWGPDF





Fibre Cement Sheet Series 820 series not issued





Concrete Block Series 830



SS-830
StoStucco Construction System External Corner Concrete Block/StoStucco
DWGPDF
SS-831
StoStucco Construction System Internal Corner Concrete Block/StoStucco
DWGPDF
SS-832
StoStucco Construction System Vertical Joint Concrete Block/StoStucco
DWGPDF
SS-833
StoStucco Construction System Horizontal Junction Concrete Block/StoStucco
DWGPDF



Manufactured Stone - Schist & Natural Stone Series 840



SS-840
StoStucco Construction System Ext.Cnr Manuf.Stone/StoStucco
DWGPDF
SS-841
StoStucco Construction System Boxed Ext.Cnr Stone Veneer/StoStucco
DWGPDF
SS-842
StoStucco Construction System Int.Cnr Manuf.Stone/StoStucco
DWGPDF
SS-843
StoStucco Construction System Vertical Junction Manuf.Stone/StoStucco
DWGPDF
SS-844
StoStucco Construction System Ext.Cnr Schist or Stone Veneer/StoStucco
DWGPDF
SS-845
StoStucco Construction System Int.Cnr Schist or Stone Veneer/StoStucco
DWGPDF
SS-846
StoStucco Construction System Vertical Junction Schist or StoneVeneer/StoStucco
DWGPDF
SS-847
StoStucco Construction System Horiz.Junction Schist or StoneVeneer/StoStucco
DWGPDF





Profile Metal Series 850 Series series not issued
StoTherm Panel EIFS Series 860 series not issued





Dissimilar Joinery Series 870

Timber Joinery



SS-870
StoStucco Construction System Timber Window Joinery - Head Detail
DWGPDF
SS-871
StoStucco Construction System Timber Window Joinery - Sill Detail
DWGPDF
SS-872
StoStucco Construction System Timber Window Joinery - Jamb Detail
DWGPDF
SS-873
StoStucco Construction System Timber Joinery - Timber Floor/Threshold Detail
DWGPDF
SS-874
StoStucco Construction System Timber Joinery - Concrete Floor/Threshold Detail
DWGPDF





NK PVCu Joinery 875 - 877 series not issued





Flashman Joinery Flashing System



SS-878
StoStucco Construction System Flashman Head Flashing
DWGPDF
SS-879
StoStucco Construction System Flashman Sill Flashing
DWGPDF
SS-880
StoStucco Construction System Flashman Jamb Flashing
DWGPDF



Homerit PVC Joinery



SS-881
StoStucco Construction System Homerit PVC Joinery - Head Detail
DWGPDF
SS-882
StoStucco Construction System Homerit PVC Joinery - Sill Detail
DWGPDF
SS-883
StoStucco Construction System Homerit PVC Joinery - Jamb Detail
DWGPDF



Mouldings & Shapes



Refer to - www.accumen.co.nz
Lightweight exterior decorative moldings and shapes, including columns, architraves, cornices, window sills, fence caps, quoins that can be finished in Stolit K or MP sponge coloured finishing render.



Note: Decorative mouldings require min. 10° slope to top surface and a drip edge.



Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated December 2017
