Render Brick Construction


Render Systems for Render Brick Construction



Overview

Mankinds original use of fire and clay to create terracotta products has lead to the development of a diverse range of bricks and construction techniques. Today bricks are still produced in the original manner or manufactured by industrial kilns using the latest technology and chemical additives to enhance the quality and properties. Researching the vigorous demands, Sto has developed a comprehensive range of facade renders and solutions to enable specifiers to select an individual style to meet the project requirements, providing optimal protection and finish with warranty for all render brick construction.








Brochure

Brochure
Render Brick - StoMiral / StoArmat Miral Render Systems
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF

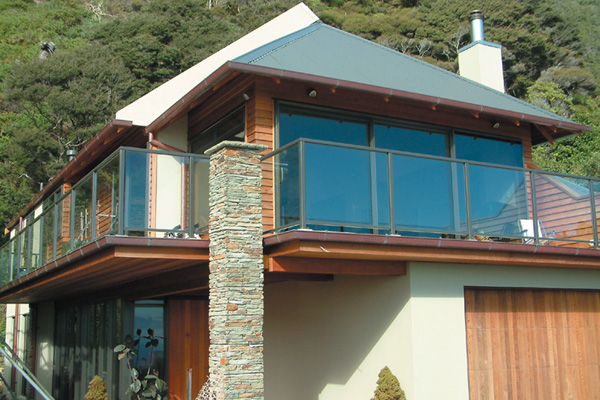

Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



StoArmat Miral Plaster Image 1 StoArmat Miral Plaster Image 2 StoArmat Miral Plaster Image 3 StoArmat Miral Plaster Image 4



StoArmat Miral Plaster Image 5 StoArmat Miral Plaster Image 6 StoArmat Miral Plaster Image 7 StoArmat Miral Plaster Image 8
StoArmat Miral Plaster Image 9



Click here to hide images.












StoArmat Miral Render System

A BRANZ appraised high performance system to provide exceptional crack resistance and weather protection. The application includes a basecoat render to straighten any irregularities. Followed by StoArmat render and glass fibre mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoArmat Miral Render System
Click on each of the layers below to view the components of the system.







Component Builder miral_armat_render_block_250 miral_armat_render_block_240 miral_armat_render_block_220 miral_armat_render_block_230 miral_armat_render_block_210 miral_armat_render_block_220



01

Basecoat: StoLevell Novo / Multiscreed Mineral Render

White mineral render with excellent adhesion including build properties, water retention agents and machine application properties.



poren plaster bag



02

Reinforcement Render: StoArmat Render

High flexibility, crack resistance of six times higher then that of cement based products plus durability against mechanical stress ensure the highest system reliability render (plaster) available. Contains no cement.



sto bucket    stoarmat bend test



03

Plus: Sto mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



04

Finishing Render: Stolit Renders

Organically bound, strong, hard wearing, impact resistant, pre coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



05

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 515

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assuranc












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint








TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF
TDS / MSDS
StoPlex W
PDF PDF



Reinforcement Mesh:



TDS
StoMesh 4mm
PDF
TDS
StoMesh 7mm
PDF



Reinforcement Render / Base Render:





TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
Multiscreed 6/8 mm
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification



SS-508
StoMiral Render (plaster) System on New or Existing Brick
PDF
SS-509
StoArmat Render (plaster) System on New or Existing Brick
PDF
SS-510
Sto Brick Bag Wash System
PDF



Download a BRANZ Appraisal



BRANZ Appraisal
Render Brick - StoArmat Miral Render System - 515
Branz Appraisal

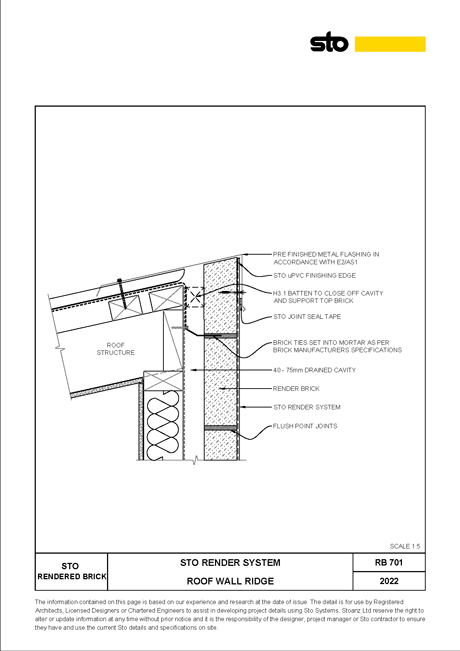

CAD or PDF Details

sto detail expand



Download a Detail Set



RB-ALL
Sto Render Brick - Complete Set (1.43mb)
PDF





Download an Individual Detail



RB-001
Sto Render Brick - Introduction
DWGPDF
RB-002
Sto Render Brick - Index
DWGPDF
RB-100
StoArmat Miral Plaster System on Render Brick
DWGPDF
RB-101
StoMiral Plaster System on Render Brick
DWGPDF
RB-200
Sto Render Brick Foundation
DWGPDF
RB 300
Sto Render Brick Soffit Detail
DWGPDF
RB-400
Sto Render Brick Base to StoTherm EPS
DWGPDF
RB-500
Sto Render Brick with Tap Fixing
DWGPDF
RB-501
Sto Render Brick with Galvanised Fixing Bracket
DWGPDF
RB-550
Sto Render Brick Joinery Jamb Detail
DWGPDF
RB-551
Sto Render Brick Joinery Sill Detail
DWGPDF
RB-552
Sto Render Brick Joinery Head Detail
DWGPDF



Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated November 2017
