StoSilent Systems

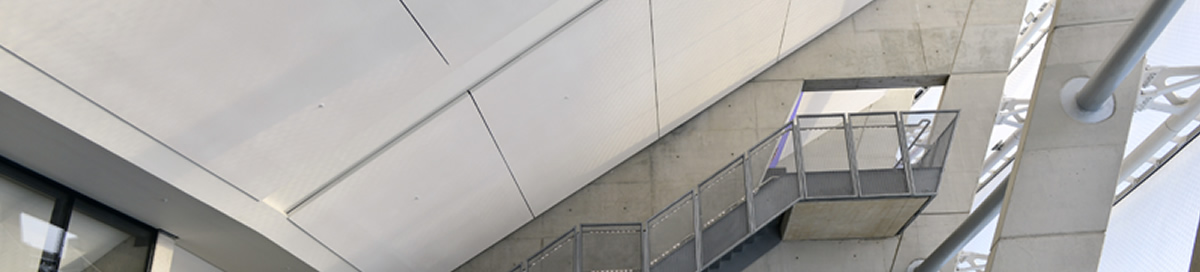

Acoustic Systems for Interior Applications



Overview

Effective acoustic solutions are becoming increasingly important in modern architecture. Even during the planning stage, ways to positively influence the sound of a room as inconspicuously as possible is a major consideration. Ultimately, the way a room is perceived depends heavily on how it is heard, and seen, by those who use it.



At Sto, we have been researching this topic for over 25 years. Our aim has always been to provide you with the means and materials you need to design acoustically perfect rooms that look as good as they sound.



Note: Some StoSilent Acoustic products are indent items.
It is recommended to contact Sto NZ for design guidelines.








Brochure

Brochure
StoSilent Acoustic Systems
PDF
Brochure
StoSilent Planning Manual
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.

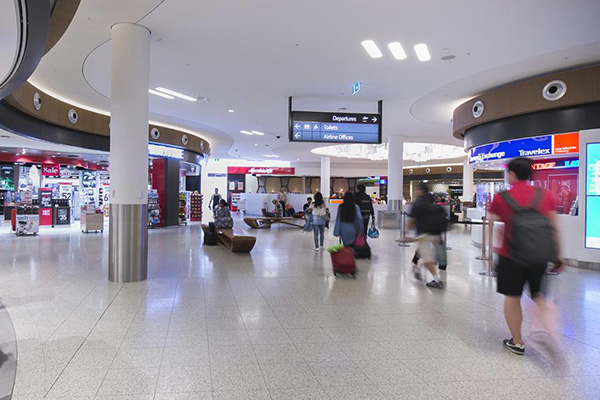

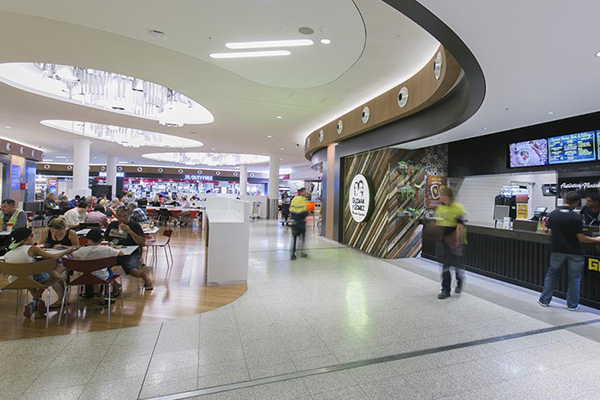

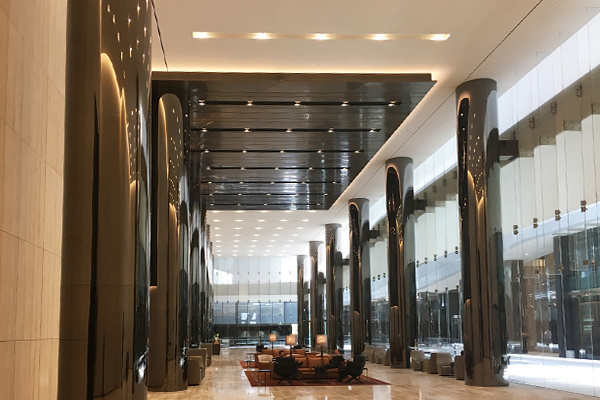

Collins Square Melbourne Collins Square Melbourne Perth Airport Perth Airport

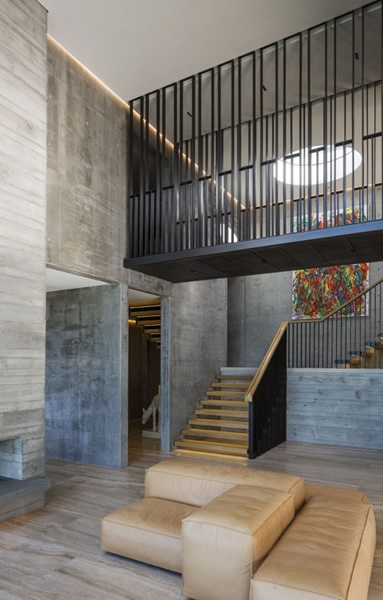

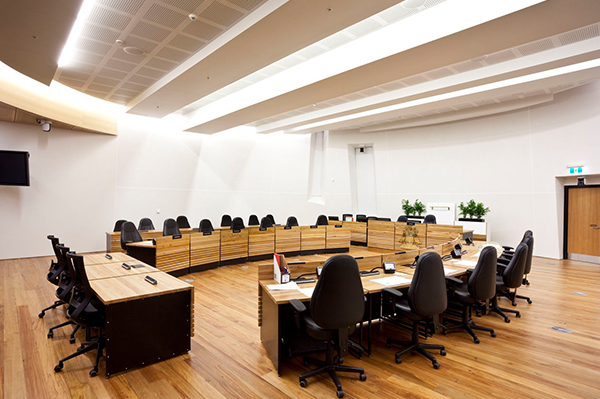

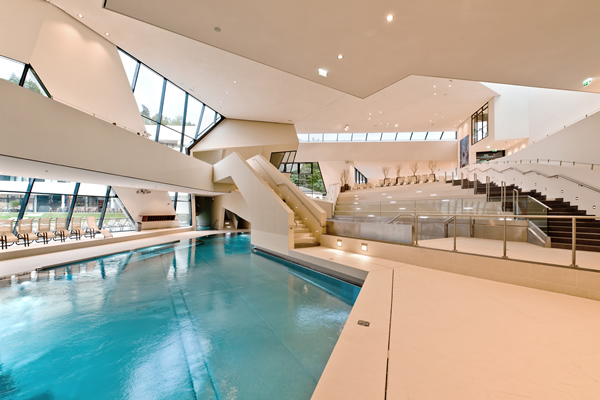

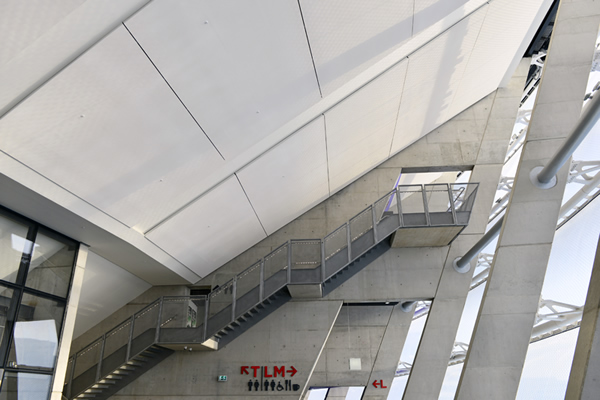

Hobson Bay House Auckland Christchurch City Council Chambers Kärnten Therme, Austria  The SSE Hydro, Glasgow

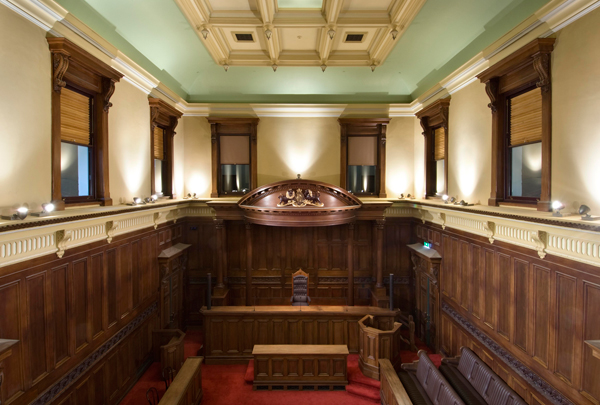

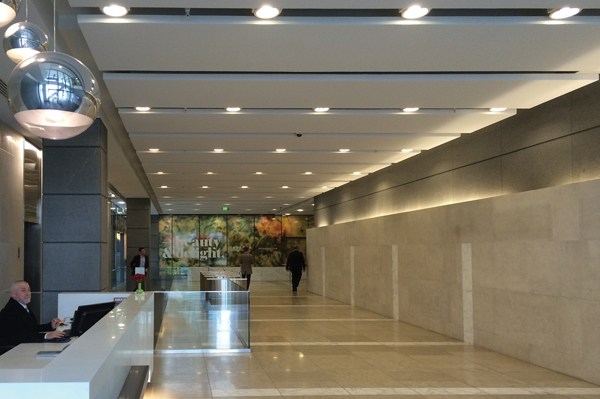

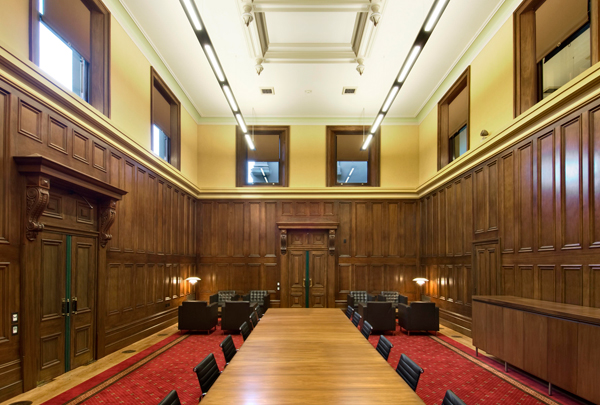

Ernst & Young Britomart Auckland Supreme Court of New Zealand, Wellington Supreme Court of New Zealand, Wellington



Click here to hide images.












System variants





StoSilent Distance

StoSilent Distance

Installed as a suspended ceiling or as a wall covering with cavity. The sub-construction is made of metal profiles and the acoustic panel consists of expanded glass granulate. The advantages of this material; it is light, absorbs sound, and can be adjusted to any shape of room to form a homogeneous, seamless surface.

  1. Sub-construction
  2. Self-adhesive - StoSilent Profile Tape
  3. Acoustic Board Options -
    StoSilent Board,
    Our standard boards for seamless acoustic solutions, offering a varying acoustic properties.
    StoSilent A2 Board,
    A level up from standard StoSilent board, non-combustible with increased sound absorption.
    StoSilent Flex Board,
    Designed for forming curves and vaults down to a 5m radius.
  4. Intermediate Coat - StoSilent Top Basic
  5. Finish - StoSilent Top Basic / Top Finish / Décor M





StoSilent Direct

StoSilent Direct

Consists of composite mineral fibre boards with a pre-applied, textured surface. The boards are bonded directly to the substrate, and their pre-chamfered joints can be left as is, or filled prior to applying one of the StoSilent textured finishes. Seamless surfaces up to 700 m² can be created without the need for a break in the system, as well as curves down to a radius of 5m.

  1. Adhesive - Sto Adhesive Render
  2. Joint Filler - StoSilent Filler
  3. Acoustic Board - StoSilent Board MW
  4. Intermediate Coat - StoSilent Top Basic
  5. Finish - StoSilent Top Basic / Décor M / Climasan




TDS / MSDS

sto detail expand

StoSilent Distance System

sto detail expand

Barrier Tape:



TDS
StoSilent Profile Tape
PDF



StoSilent Distance Board:



TDS / MSDS
StoSilent Board 300 - for StoSilent Top Basic / Finish
PDF PDF
TDS / MSDS
StoSilent Board 310 - for Decor M
PDF PDF
TDS / MSDS
StoSilent Board 100/A2 - for StoSilent Top Basic / Finish
PDF PDF
TDS / MSDS
StoSilent Board 110/A2 - for Decor M
PDF PDF



Fillers:



TDS / MSDS
StoSilent Fix
PDF PDF
TDS / MSDS
StoSilent Plan - for 310 Board & Decor M system only
PDF PDF



StoSilent Distance Coatings:



TDS / MSDS
StoSilent Top Basic
PDF PDF
TDS / MSDS
StoSilent Top Finish
PDF PDF
TDS / MSDS
StoSilent Decor M
PDF PDF





StoSilent Direct System

sto detail expand

Adhesive:



TDS
StoSilent Coll MW
PDF



StoSilent Direct Board:



TDS
StoSilent Board MW 100
PDF



Fillers:



TDS / MSDS
StoSilent Filler
PDF PDF





StoSilent Direct Coatings:



TDS / MSDS
StoSilent Top Basic
PDF PDF
TDS / MSDS
StoSilent Decor M
PDF PDF
TDS
StoColor Climasan
PDF






Fire Rating

sto detail expand



Download a BRANZ Appraisal



BRANZ Appraisal
StoSilent Distance Panel Fire Test Report FH4892
Branz Appraisal



BRANZ Appraisal
StoSilent Direct Board Fire Test Report FH6000
Branz Appraisal







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated October 2018
