StoPoren Brick Veneer Construction


Autoclaved Aerated Concrete (AAC) Ventilated-Cavity Brick System



Overview

Over 50 years ago a manufacturing process was developed that led to the invention of light weight concrete. Its unique structure being 20% the weight of concrete, easily worked, incombustible, acoustically and thermally effective has ensured its acceptance in the construction industry.



Based on traditional construction methods Sto replaced small traditional bricks with a 600 x 200 x 75 mm solid brick system for fast and simple the installation. StoPoren Brick Veneer (AAC) provides a ventilated-cavity designed system, incorporating a 40 to 75 mm drainage cavity between the interior and exterior claddings. Combined with the Sto Render System of choice, the StoPoren Brick Veneer Facade System provides optimal protection and finish with warranty for your building investments.








Brochure

Brochure
StoPoren Brick Veneer Construction
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Terry Clegg Showhome, New PlyMouth West Melton, Canterbury StoPoren Block Veneer Image 1 StoPoren Block Veneer Image 3



StoPoren Block Veneer Image 4 StoPoren Block Veneer Image 5



Click here to hide images.












StoPoren Brick Veneer

Design & Build with StoPoren Brick Veneer - Use of 600 x 200 x 75 mm StoPoren Bricks with reinforced lintels provide opportunities for designers to offer clients durable, solid substrates that are incombustible, sound absorbing and thermally stable. The materials are easily cut allowing the designer freedom to create clean straight lines.



The StoPoren Bricks are fixed with brick ties to form a 40 to 75 mm drainage cavity, allowing for a dry zone between the interior and exterior claddings.





StoPoren brick veneer

Benefits

  • Easy to use, cut and detail.

  • Reinforced lintels for openings.

  • Ventilated-cavity design.

  • Time & cost efficient construction.

  • Good acoustic properties.

  • Energy efficient.

  • Non-combustible & fire resistant

  • Tested for mortar & strength.

  • For residential & commercial applications.














StoPoren Armat Render System

A BRANZ appraised high performance system to provide exceptional crack resistance and weather protection. A stay dry sealer for AAC materials is applied to the StoPoren Brick Veneer plus a render base coat. UPVC flashings lock into the junctions and joinery providing a neat junction ready for a weathertight sealant. The cement free StoArmat, combined with a glass fibre mesh, provides up to 6 times more crack resistance than standard cement based reinforcement. Finished with perfectly interlocking components: Stolit fibre reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20 Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoPoren Armat Render System
Click on each of the layers below to view the components of the system.







Component Builder poren_armat_1700 poren_armat_1600 poren_armat_1410 poren_armat_1500 poren_armat_1300 poren_armat_1400 poren_armat_1200 poren_armat_1100



01

StoPoren Brick

A large lightweight Concrete Building Brick.



02

Sealer: Protectosil WS205

Certified, silane sealer with water repellent and stability properties.



03

Basecoat: Poren Render 4/5 mm

Mineral render with good adhesion properties, water retention agents and machine application properties.



poren plaster bag



05

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



04

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



06

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



07

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 739

sto warranty

StoArmat 15 or 20 Year Warranty with StoService Assurance












StoPoren Render System

The StoPoren Render System is a BRANZ appraised, high performance, low cost system. Reinforced with a mineral-based render, glass fibre mesh and UPVC flashings for junctions and joinery. Finished with perfectly interlocking components: Stolit fibre reinforced coloured finishing render plus StoColor; creating a weather tight reinforcement system enhancing reliability and protection.



Installations are implemented by a Sto Registered Licensed Building Practitioner and available with a Sto 15 year Warranty and StoService Assurance, with Building code material component compliance and Sto QA standard workmanship guaranteed; delivering an economically sound and practical solution for your facade requirements, including a service plan for security.









StoPoren Render System
Click on each of the layers below to view the components of the system.





Component Builder poren block 160 poren block 120 poren block 150 poren block 140 poren block 121 poren block 130 poren block 110 poren block 100



01

StoPoren Brick

A large lightweight Concrete Building Brick.



02

Sealer: Protectosil WS205

Certified, silane sealer with water repellent and stability properties.



03

Render: Poren Render 4/5 mm

Mineral render with good adhesion properties, water retention agents and machine application properties.



poren plaster bag



04

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



05

Sealer: StoPlex W

Aqueos, acrylate universal primer with siloxane additives. Good penetration capability, with adhesion improving, absorbency regulating and water repellent properties.



can



06

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



07

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 739

sto warranty

Sto 15 Year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint






Data Sheets

sto detail expand



Download a Data Sheet:

Technical Datal Sheet (TDS) / Material Saftey Data Sheet (MSDS) / Sustainability Data Sheet (SDS)



Primers / Sealers:



DS
StoFlexyl
PDF PDF PDF
DS
S-Protect WS205
PDF PDF
DS
StoPlex W
PDF PDF



Reinforcement Mesh:



DS
Sto Glass Fibre Mesh 4mm
PDF
DS
Sto Glass Fibre Mesh 7mm
PDF



Reinforcement Render / Base Render:



DS
StoPoren Render
PDF PDF
DS
StoArmat Classic Render
PDF PDF PDF



Finishing Renders:



DS
Stolit K 1.0mm
PDF PDF PDF
DS
Stolit K 1.5mm
PDF PDF PDF
DS
Stolit K 2.0mm
PDF PDF PDF
DS
Stolit K 3.0mm
PDF PDF PDF
DS
Stolit MP & MP Natural
PDF PDF PDF
DS
Stolit Milano
PDF PDF



Coatings:



DS
StoColor X-black
PDF PDF
DS
StoColor Lotusan
PDF PDF PDF
DS
StoColor Maxicryl
PDF PDF PDF
DS
StoColor Lastic Satin
PDF PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification

Please register all completed Sto specifications to info@sto.co.nz to ensure project confirmation and Sto warranty.



SS605
StoPoren Brick Veneer System with StoMiral Render System
Specification Icon
SS606
StoPoren Brick Veneer System with StoArmat Render System
Specification Icon
MasterSpec
4285SP - StoPoren Brick Veneer System
Specification Icon



Download a BRANZ Appraisal



BRANZ Appraisal
739 - StoPoren Brick Veneer Construction System
Branz Appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



PB-ALL
StoPoren Brick Veneer - Complete Detail Set (2.9mb)
PDF
BIM
Revit Wall Structure Files
PDF





Download an Individual Detail



Drawing Register and Introduction Series 000

sto detail expand
PB-001-All
Introduction Complete Series 000
PDF
PB-001-3
Drawing Register
DWGPDF
PB-004
Sto Brick System Introduction
DWGPDF
PB-005
Sto Brick System Narrow Widths & Stress Points
DWGPDF
PB-006
Sto Brick System Timber Lintel Calculation Tables
DWGPDF

Panel Layout Series 100

sto detail expand
PB-100-All
Panel Layout Complete Series 100
PDF
PB-100
Sto Brick System/StoMiral Render System - Isometric
DWGPDF
PB-101
Sto Brick System/StoArmat Render System - Isometric
DWGPDF

Foundation Series 200

sto detail expand
PB-200-All
Foundation Complete Series 200
PDF
PB-200
Sto Brick System Foundation Slab-on-ground
DWGPDF
PB-201
Sto Brick System Foundation Timber Floor
DWGPDF
PB-202
Sto Brick System Insulated Pod Floor System / Edge Detail
DWGPDF

Wall Series 300

sto detail expand
PB-300-All
Wall Complete Series 300
PDF
PB-300
Sto Brick System External Corner
DWGPDF
PB-301
Sto Brick System Internal Corner
DWGPDF
PB-302
Sto Brick System Vertical Control Joint
DWGPDF
PB-303
Sto Brick System Galvanised Fixing Brackets
DWGPDF
PB-304
Sto Brick System Standard Lintel Connection
DWGPDF
PB-305
Sto Brick System Lintel Opening (unsupported)
DWGPDF
PB-306
Sto Brick System Lintel Opening (supported) - Opt 1
DWGPDF
PB-307
Sto Brick System Lintel Opening (supported) - Opt 2
DWGPDF

Wall Penetrations & Fittings Series 350

sto detail expand
PB-350-All
Wall Penetrations & Fittings Complete Series 350
PDF
PB-350
Sto Brick System Pipe Penetration Detail - up to 150mm
DWGPDF
PB-351
Sto Brick System Light Fitting/Fixing Detail
DWGPDF
PB-352
Sto Brick System Tap Fitting/Fixing Detail
DWGPDF
PB-353
Sto Brick System Handrail Bracket/Fixing Detail
DWGPDF
PB-354
Sto Brick System Meterbox - head, sill & jamb
DWGPDF
PB-355
Sto Brick System Downpipe Saddle Fixing & Wiring Details
DWGPDF
PB-356
Sto Brick System Fan Vent Detail
DWGPDF

Joinery Series 400

sto detail expand
PB-400-All
Joinery Complete Series 400
PDF
PB-400
Sto Brick System Alu.Joinery - Head Detail - openings up to 2000mm
DWGPDF
PB-401
Sto Brick System Alu.Joinery - Head Detail - openings over 2000mm
DWGPDF
PB-402
Sto Brick System Alu.Joinery - Sill Detail - Opt 1
DWGPDF
PB-403
Sto Brick System Alu.Joinery - Sill Detail - Opt 2
DWGPDF
PB-404
Sto Brick System Alu.Joinery - Jamb Detail
DWGPDF
PB-405
Sto Brick System Entry Door Head Detail
DWGPDF
PB-406
Sto Brick System Entry Door Threshold Detail
DWGPDF
PB-407
Sto Brick System Entry Door Jamb Detail
DWGPDF
PB-408
Sto Brick System Sliding Door Head Detail
DWGPDF
PB-409
Sto Brick System Sliding Door Threshold - Concrete Floor
DWGPDF
PB-410
Sto Brick System Sliding Door Jamb Detail
DWGPDF
PB-411
Sto Brick System Garage Door Head Detail
DWGPDF
PB-412
Sto Brick System Garage Door Jamb Detail
DWGPDF

Parapets, Balustrades, Decks Series 500

sto detail expand
PB-500-All
Parapets, Balustrades, Decks Complete Series 500
PDF
PB-500
Sto Brick System Parapet/Metal Flashing Detail
DWGPDF
PB-501
Sto Brick System Parapet/Rendered Detail
DWGPDF
PB-502
Sto Brick System Parapet and/or Encl.Balustrade Wall Junction - Plan View
DWGPDF
PB-503
Sto Brick System Flexible Flashing Install - Isometric
DWGPDF
PB-504
Sto Brick System Parapet Cap Installation Details
DWGPDF
PB-505
Sto Brick System StoFlexyl Meshed Saddle Flashing Install - Isometric
DWGPDF
PB-506
Sto Brick System StoFlexyl Meshed Waterproofing Cap Install - Isometric
DWGPDF
PB-507
Sto Brick System Balustrade/Encl.Deck
DWGPDF
PB-508
Sto Brick System Cantilevered Slatted Deck
DWGPDF
PB-509
Sto Brick System Non Cantilevered Slatted Deck
DWGPDF
PB-510
Sto Brick System Independent Slatted Deck
DWGPDF
PB-511
Sto Brick System Timber Beam / Pergola Detail
DWGPDF

Soffit Series 600

sto detail expand
PB-600-All
Soffit Complete Series 600
PDF
PB-600
Sto Brick System Flat Soffit/Wall Junction
DWGPDF
PB-601
Sto Brick System Raking Soffit/Wall Junction
DWGPDF
PB-602
Sto Brick System Face Fixed Fascia
DWGPDF
PB-603
Sto Brick System Raking Soffit
DWGPDF
PB-604
Sto Brick System Raking Soffit - Sto uPVC Control Joint
DWGPDF
PB-604
Sto Brick System Raking Soffit - Sto uPVC Control Joint
DWGPDF
PB-605
Sto Brick System Soffit at Window/Door Head
DWGPDF

Roof Series 700

sto detail expand
PB-700-All
Roof Complete Series 700
PDF
PB-700
Sto Brick System Apron Flashing
DWGPDF
PB-701
Sto Brick System Parallel Apron Flashing
DWGPDF
PB-702

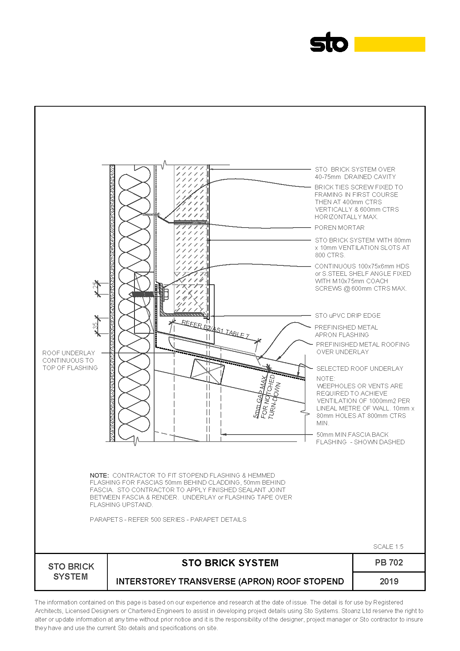

Sto Brick System Inter-storey Transverse (Apron)Roof/Stopend
DWGPDF
PB-703
Sto Brick System Inter-storey Flat (Membrane)Roof/Stopend Flashing
DWGPDF
PB-704
Sto Brick System Inter-storey Roof Stop End Flashing - PlanView
DWGPDF
PB-705
Sto Brick System Roof Penetration Gutter (Masonry Tile) Detail
DWGPDF
PB-706
Sto Brick System Roof Parallel Hidden Gutter
DWGPDF
PB-707
Sto Brick System Face Fixed Fascia/Barge
DWGPDF
PB-708
Sto Brick System Face Fixed Fascia/Membrane Roof
DWGPDF
PB-709
Sto Brick System Roof/Wall Ridge
DWGPDF
PB-710
Sto Brick System Framed Chimney
DWGPDF

Dissimilar Material Series 800

sto detail expand

Weatherboard Series 800

sto detail expand
PB-800-All
Weatherboard Complete Series 800
PDF
PB-800
Sto Brick System/Weatherboard - Ext.Corner
DWGPDF
PB-801
Sto Brick System/Weatherboard - Int.Corner
DWGPDF
PB-802
Sto Brick System/Weatherboard - Vertical Joint Flashing
DWGPDF
PB-803
Sto Brick System/Weatherboard - Horizontal Junction - Opt 1
DWGPDF
PB-804
Sto Brick System/Weatherboard - Horizontal Junction - Opt 2
DWGPDF

Brick Series 810 series not issued

Fibre Cement Sheet Series 820

sto detail expand
PB-820-All
Fibre Cement Sheet Complete Series 820
PDF
PB-820
Sto Brick System/FC Sheet - Ext.Corner
DWGPDF
PB-821
Sto Brick System/FC Sheet - Int.Corner
DWGPDF
PB-822
Sto Brick System/FC Sheet - Vertical Junction
DWGPDF
PB-823
Sto Brick System/FC Sheet - Horizontal Junction - Opt 1
DWGPDF
PB-824
Sto Brick System/FC Sheet - Horizontal Junction - Opt 2
DWGPDF

Concrete Block Series 830 series not issued
Manufactured Stone - Schist & Natural Stone Series 840 series not issued

Profile Metal Series 850

sto detail expand
PB-850-All
Profile Metal Complete Series 850
PDF
PB-850
Sto Brick System/Horiz.Profiled Metal - Ext.Cnr
DWGPDF
PB-851
Sto Brick System/Horiz.Profiled Metal - Int.Cnr
DWGPDF
PB-852
Sto Brick System/Horiz.Profiled Metal - Vertical Junction - Opt 1
DWGPDF
PB-853
Sto Brick System/Horiz.Profiled Metal - Vertical Junction - Opt 2
DWGPDF
PB-854
Sto Brick System/Horiz.Profiled Metal - Horizontal Junction - Opt 1
DWGPDF
PB-855
Sto Brick System/Horiz.Profiled Metal - Horizontal Junction - Opt 2
DWGPDF
PB-856
Sto Brick System/Vertical Profiled Metal - External Corner
DWGPDF
PB-857
Sto Brick System/Vertical Profiled Metal - Internal Corner
DWGPDF

StoTherm Panel EIFS Series 860

sto detail expand
PB-860-All
StoTherm Panel EIFS Complete Series 860
PDF
PB-860
Sto Brick System/StoTherm - External Corner
DWGPDF
PB-861
Sto Brick System/StoTherm - Internal Corner
DWGPDF
PB-862
Sto Brick System/StoTherm - Vertical Joint
DWGPDF
PB-863
Sto Brick System/StoTherm - Horizontal Junction - Opt 1
DWGPDF
PB-864
Sto Brick System/StoTherm - Horizontal Junction - Opt 2
DWGPDF

Dissimilar Joinery Series 870

sto detail expand



Timber Joinery



PB-870-All
Dissimilar Joinery Complete Series 870
PDF
PB-870
Sto Brick System Timber Window Joinery - Head Detail
DWGPDF
PB-871
Sto Brick System Timber Window Joinery - Sill Detail
DWGPDF
PB-872
Sto Brick System Timber Window Joinery - Jamb Detail
DWGPDF
PB-873
Sto Brick System Timber Door Joinery - Concrete Floor/Threshold Detail
DWGPDF



Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated June 2021
