StoArmat Render System
For James Hardie™ Axon™ Panel Smooth
Overview
The StoArmat Render System has been specifically tested and detailed for application over James Hardie™ Axon™ Panel Smooth. StoArmat, a cement-free, high-impact render with exceptional flexibility over standard cement-based plasters, ensures optimal system reinforcement and longevity for fibre cement sheet construction. Complemented by a range of Stolit coloured finishing renders for a completely weathertight facade solution, ensuring individual style and project requirements are satisfied.
Brochure
 |
 |
 |
 |
StoArmat Render System
StoArmat is a BRANZ appraised exterior render system that provides the optimal protection and durability for fibre cement sheet construction. Before the system can be applied the surface is sealed. StoArmat render reinforced with Sto glass fibre mesh is then applied over the Axon™ Panel and joints, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor or StoClear; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.
Application is carried out by a Sto Registered Contractor (Licensed Building Practitioner) and comes with the added protection of a StoArmat 15 Year Warranty with StoService Assurance, ensuring the materials used and application, meets building code standards, including a service plan for long-term performance.

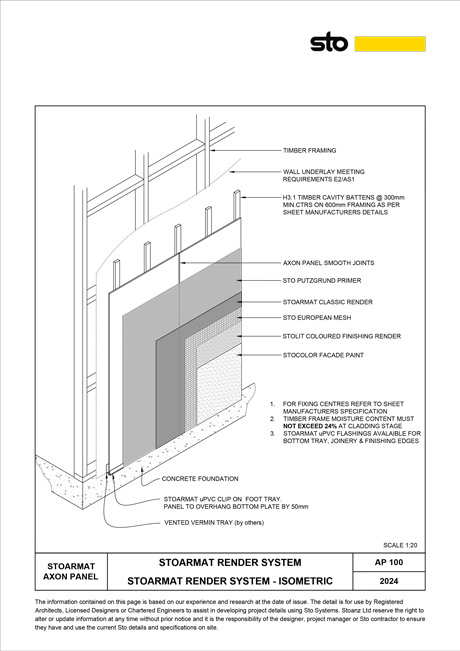

StoArmat Render System
Click on each of the layers below to view the components of the system.
01
Substrate: Fibre Cement Sheet
James Hardie™ Axon™ Panel Smooth.
02
Primer: Sto Putzgrund
Water based primer in a pail, containing an organic binder and good adhesion properties.
03
Reinforcement Render and Joint treatment: StoArmat Render
An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.
04
Plus: Sto Glass Fibre Mesh 4/7mm
Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.
03
Reinforcement Render: StoArmat Render
An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.
06
Finishing Render: Stolit Renders
Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)
Stolit K Range
Stolit MP & MP Natural
Stolit Milano
07
Coating:
StoColor coating based on IQ Technology for functional facades or a StoClear sealer.
StoColor Maxicryl
StoColor Dryonic
S-Protect SC Clear Sealer
BRANZ Appraisal 488
StoArmat 15 Year Warranty
with StoService Assurance
Finishes
Stolit: Coloured Finishing Renders
Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.
The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.
Coloured Self-Gauging Float Finish Renders: |
|||
 |
 |
 |
 |
Stolit K 1.0mm |
Stolit K 1.5mm |
Stolit K 2.0mm |
Stolit K 3.0mm |
Coloured fine float, sponge, or light adobe finish renders: |
|||
 |
 |
 |
|
Stolit MP |
Stolit MP Natural |
Stolit Milano |
Facade Coatings
StoColor facade paints and StoClear sealers are a range of a serviceable coatings embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System with 1000 shades, AC Architectural Colors, or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.
Product |
StoColor Maxicryl |
StoColor Dryonic |
S-Protect SC Clear Sealer |
StoColor System
|
Data Sheets
Download a Data Sheet:
Technical Datal Sheet (TDS) / Material Saftey Data Sheet (MSDS) / Sustainability Data Sheet (SDS)
Primers / Sealers:
Reinforcement Mesh:
Reinforcement Render / Base Render:
Finishing Renders:
Coatings:
Specifications & BRANZ Appraisal
Download a Technical Specification
Please register all completed Sto specifications to info@sto.co.nz to ensure project confirmation and Sto warranty.
Download a BRANZ Appraisal

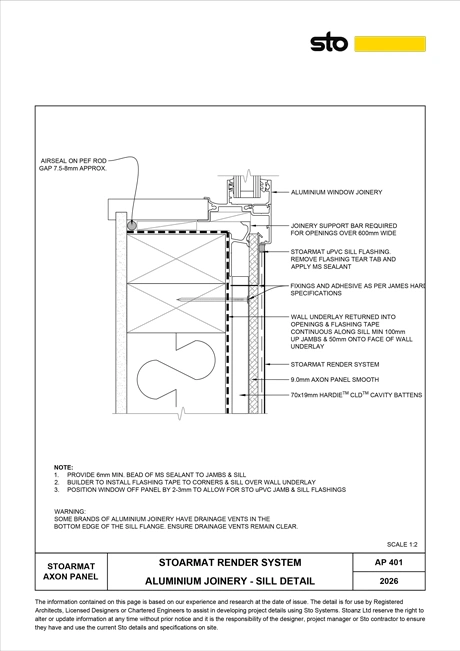

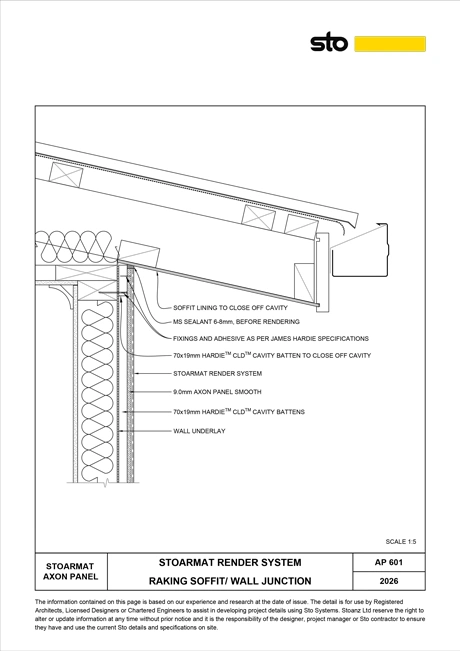

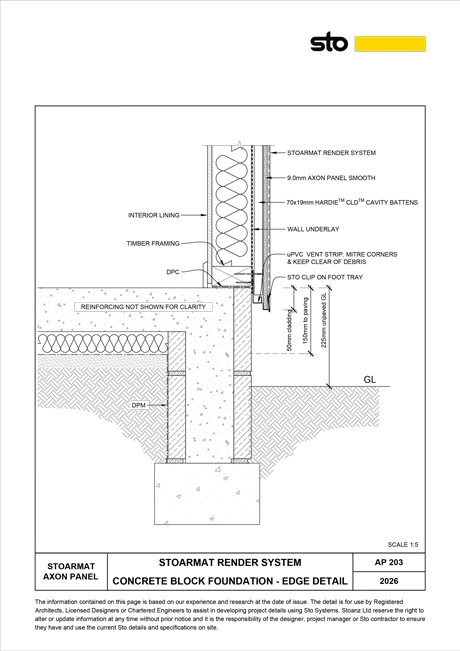

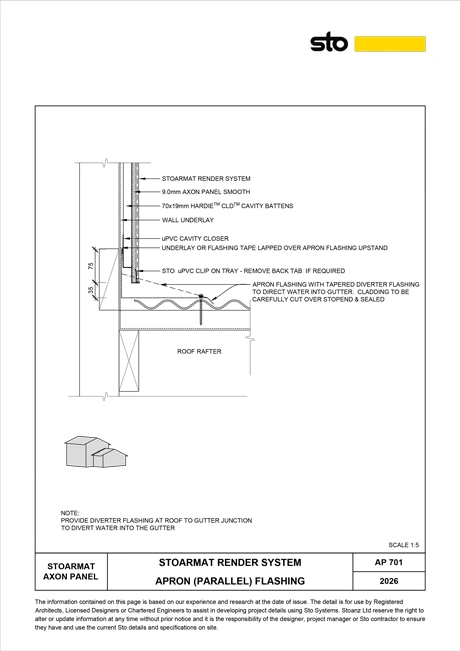

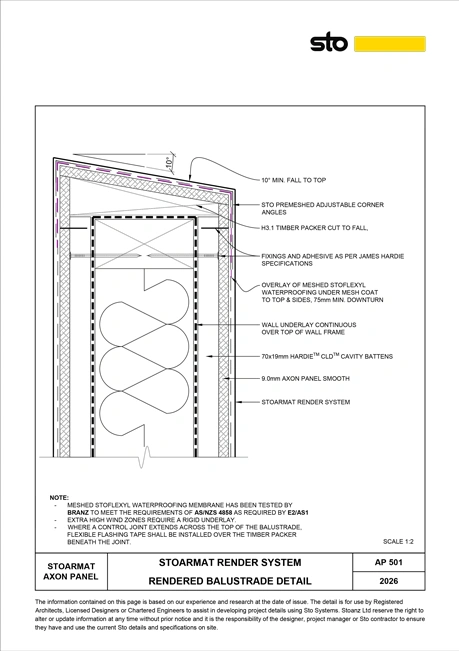

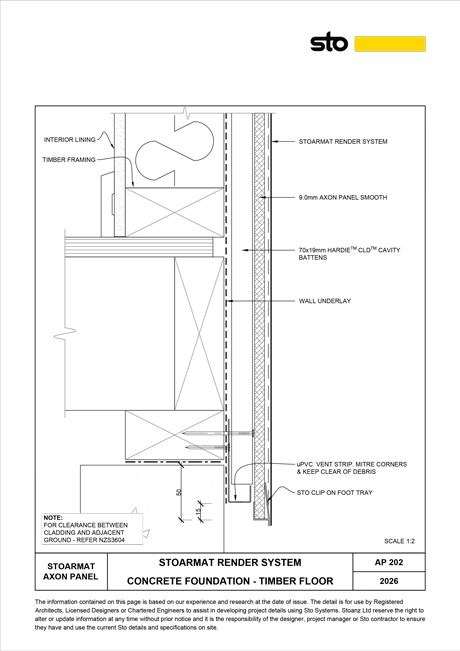

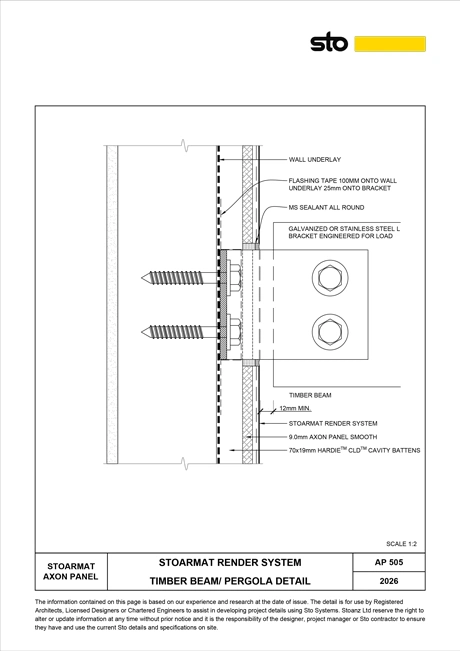

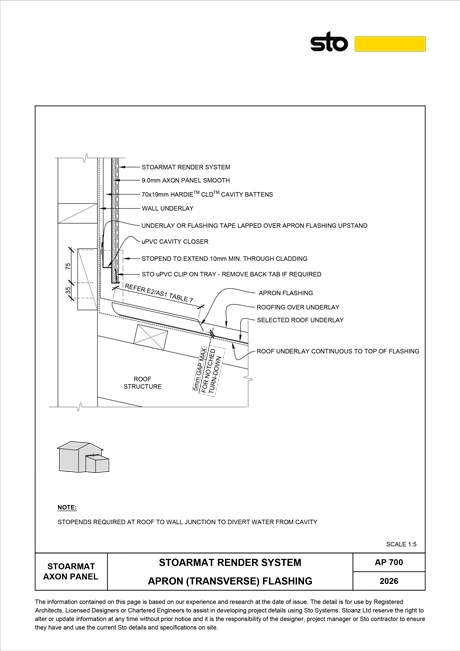

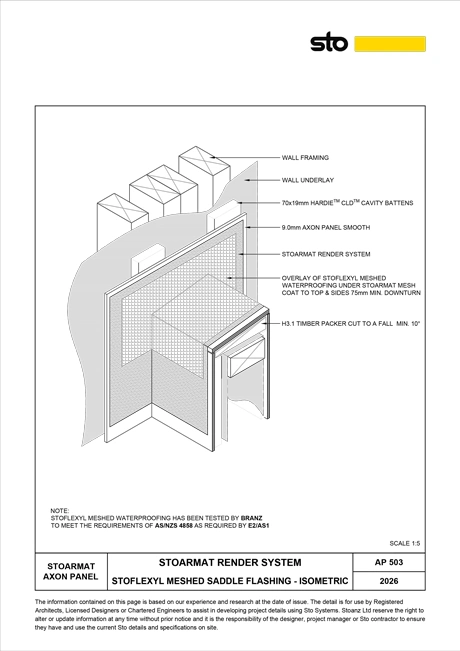

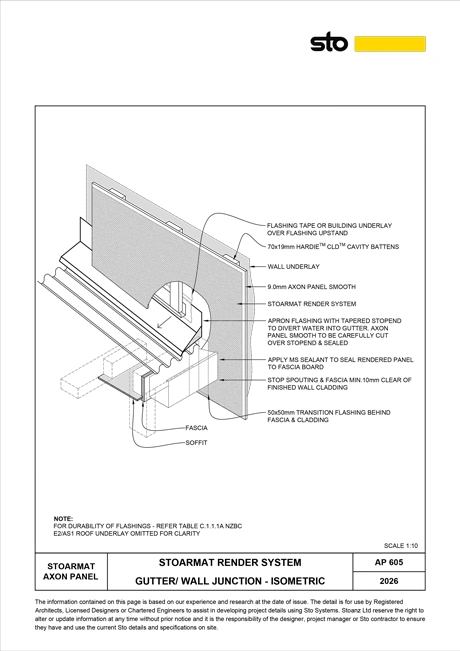

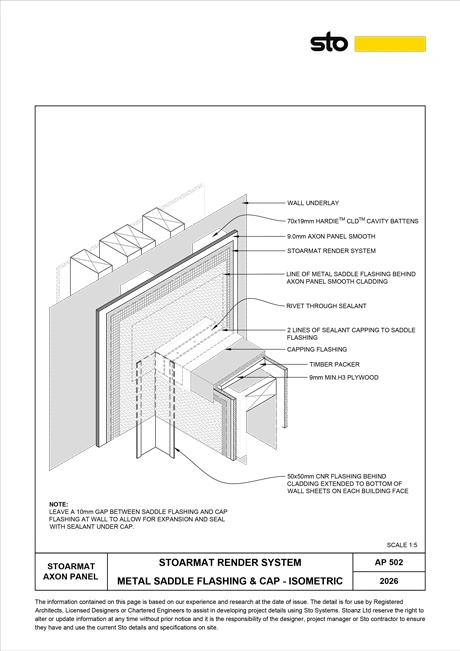

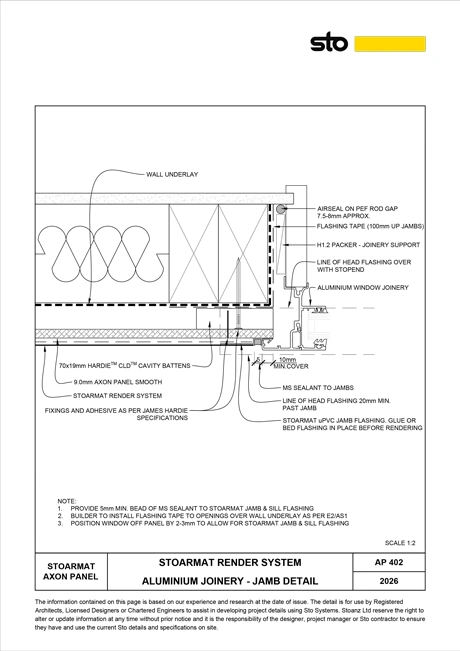

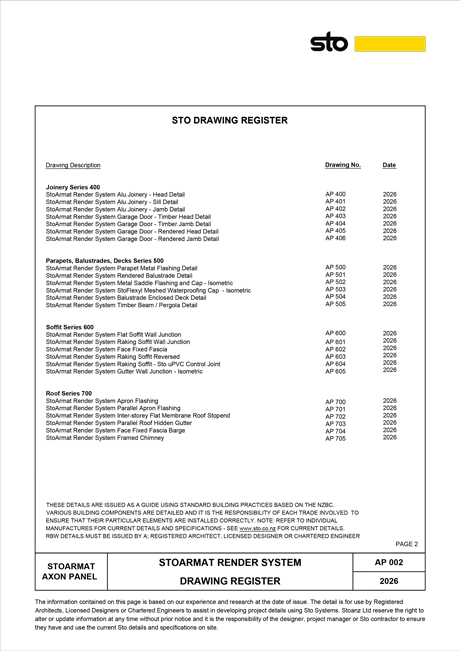

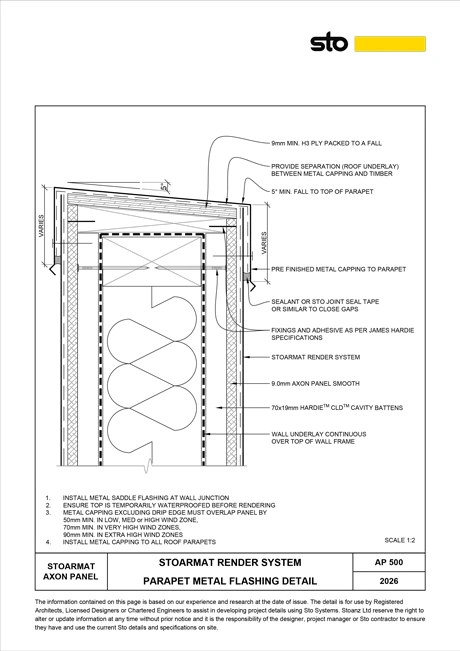

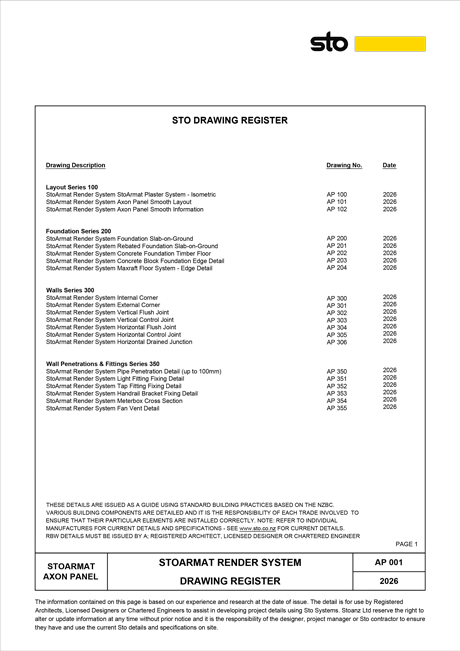

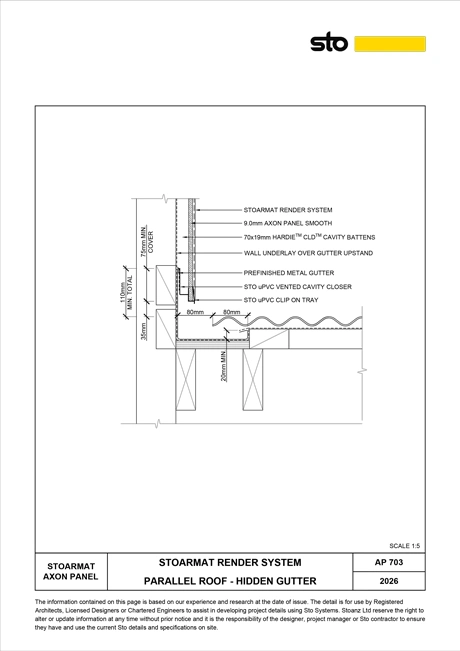

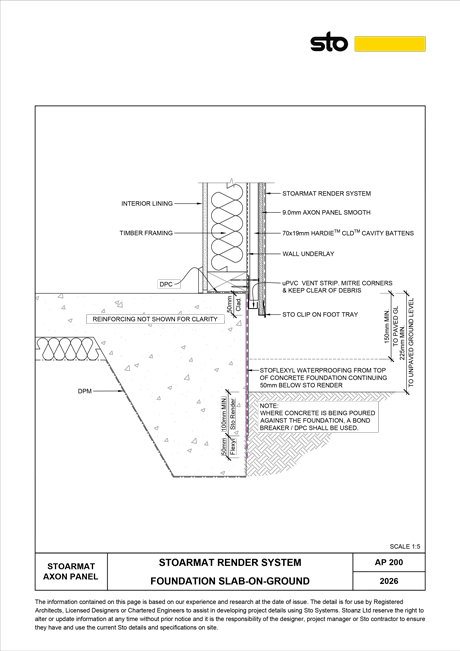

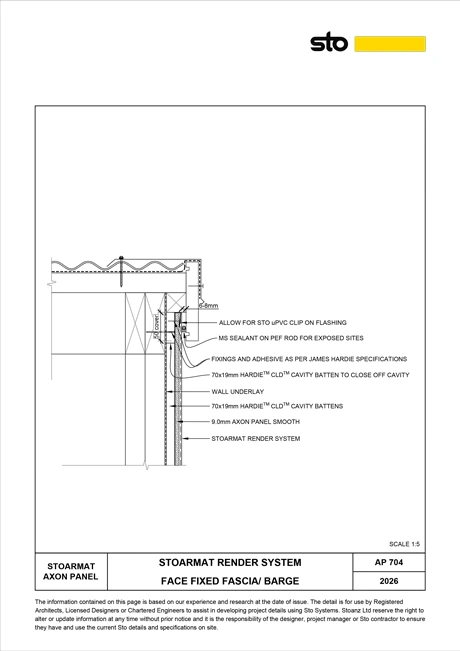

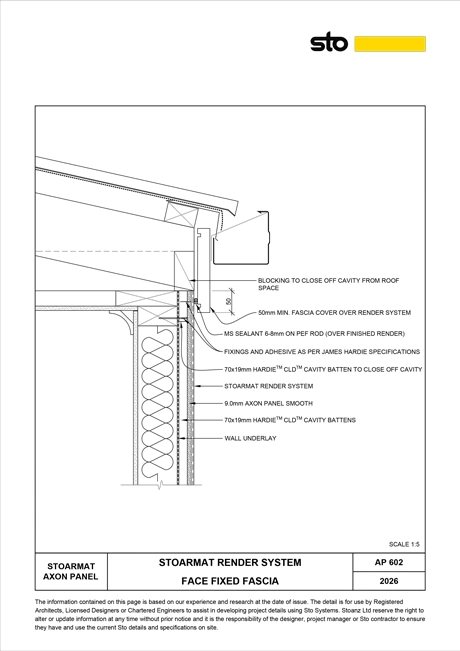

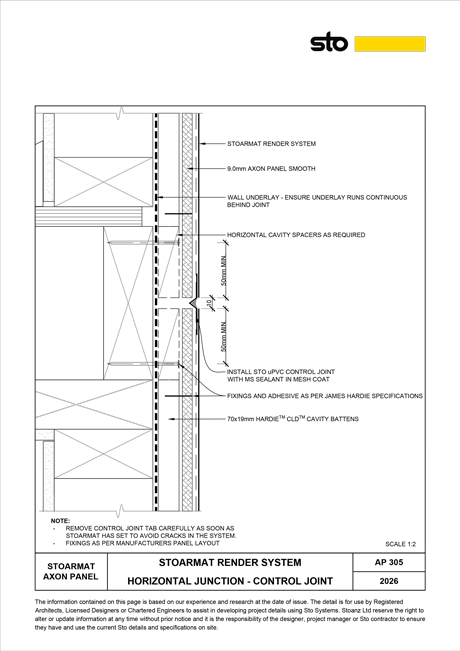

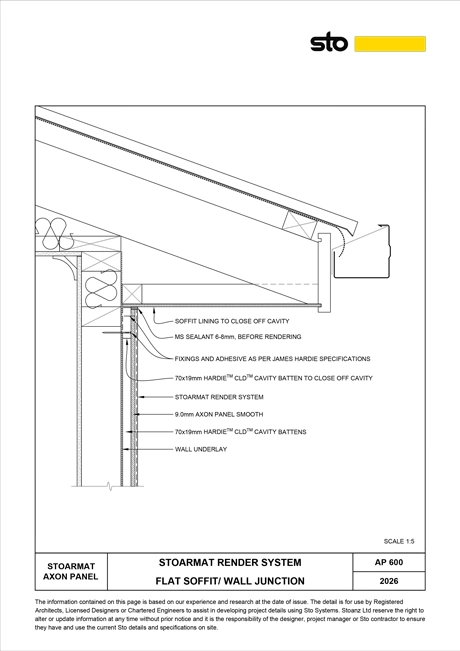

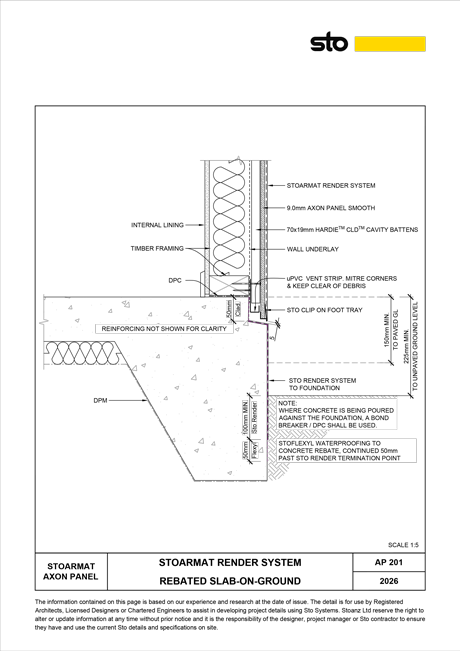

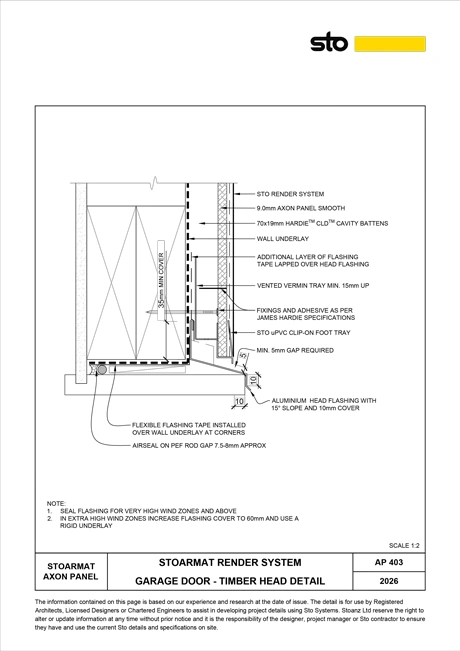

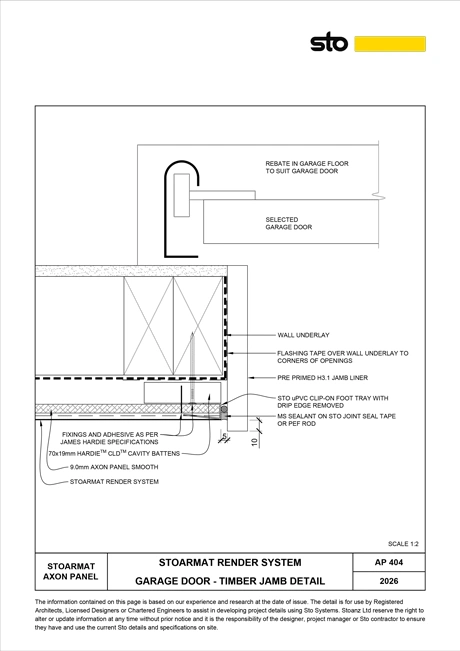

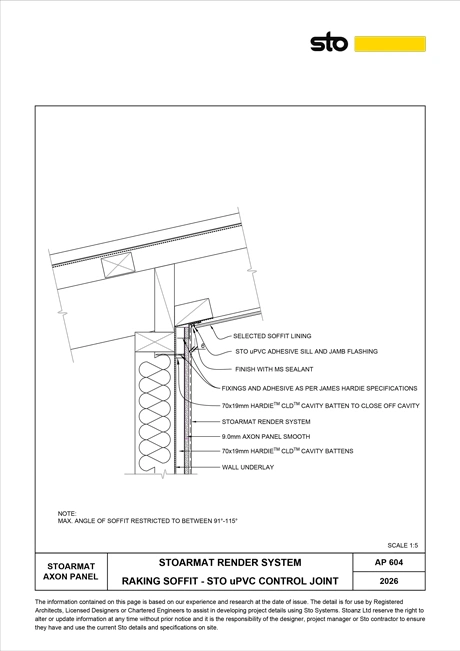

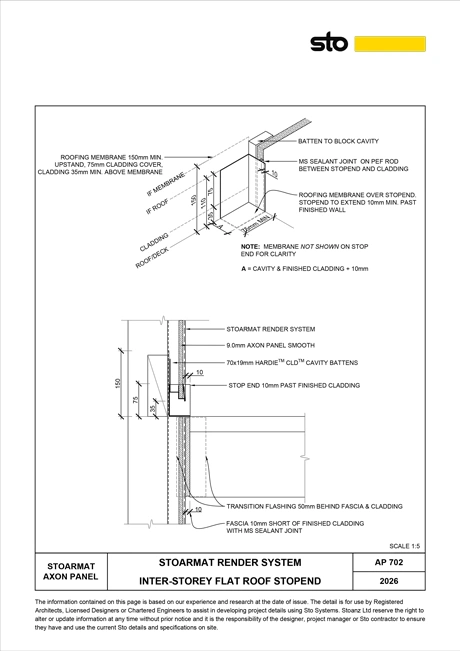

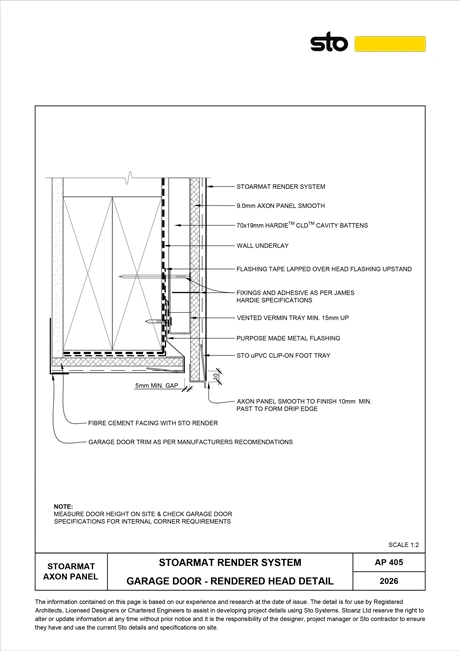

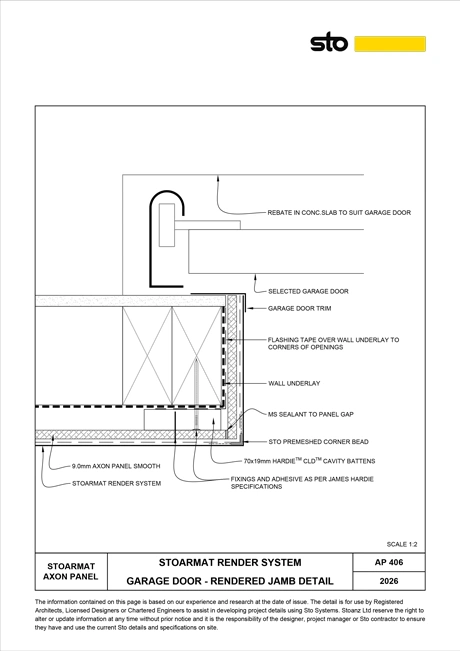

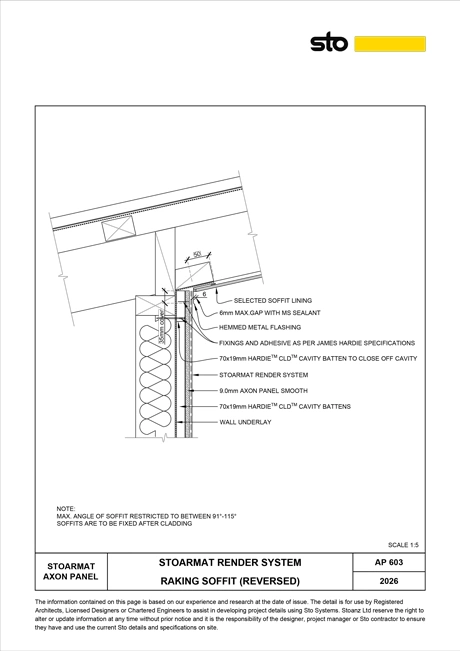

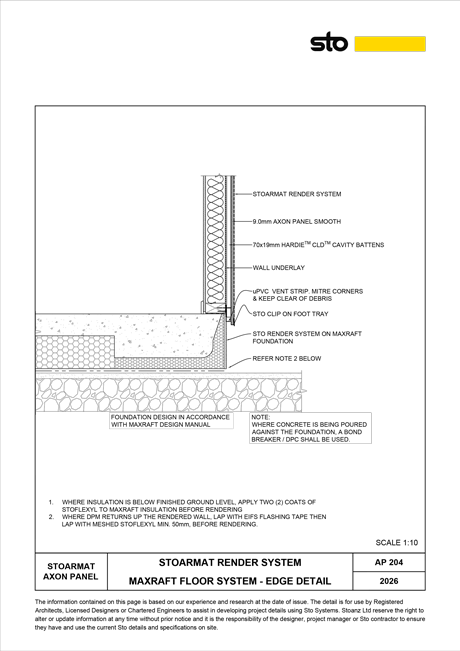

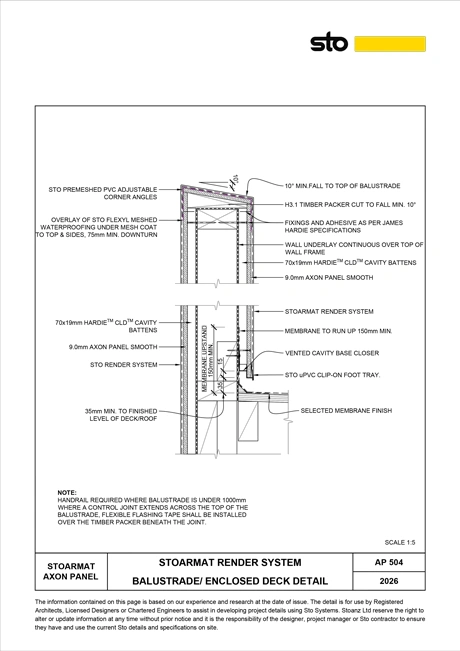

CAD or PDF Details
Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
