StoArmour Facade Panel System


Solid Construction with Lightweight Concrete



Overview

Autoclaved Aerated Concrete (AAC) has evolved into an innovative lightweight concrete building material used worldwide in various construction systems.



StoArmour Facade Panel embodies the latest in AAC technology with corrosion resistant ductile steel reinforcing, delivering a durable facade panel from a dependable supplier.



The StoArmour Facade Panel System finished in the StoArmat Miral Render System has passed a series of stringent compliance tests for commercial and residential construction, providing a superior weathertight and fire resistant facade system with good sound insulation properties and impact resistance.












Brochure

Brochure
StoArmour Facade Panel System
PDF
Brochure
StoArmat Warranty with StoService Assurance
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Thirty Eight Elizabeth, Elizabeth Towers, Tauranga Thirty Eight Elizabeth, Elizabeth Towers, Tauranga Thirty Eight Elizabeth, Elizabeth Towers, Tauranga Florian Kāpiti

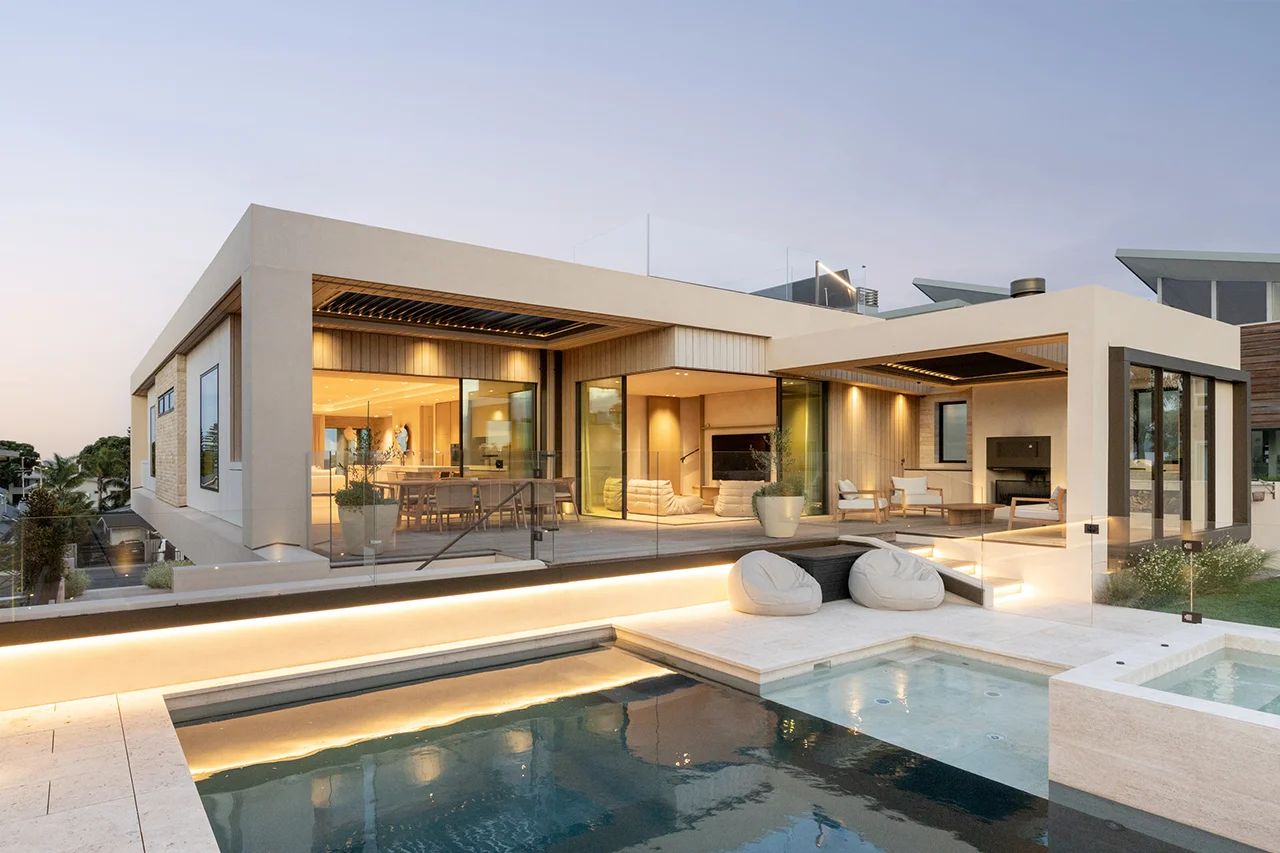

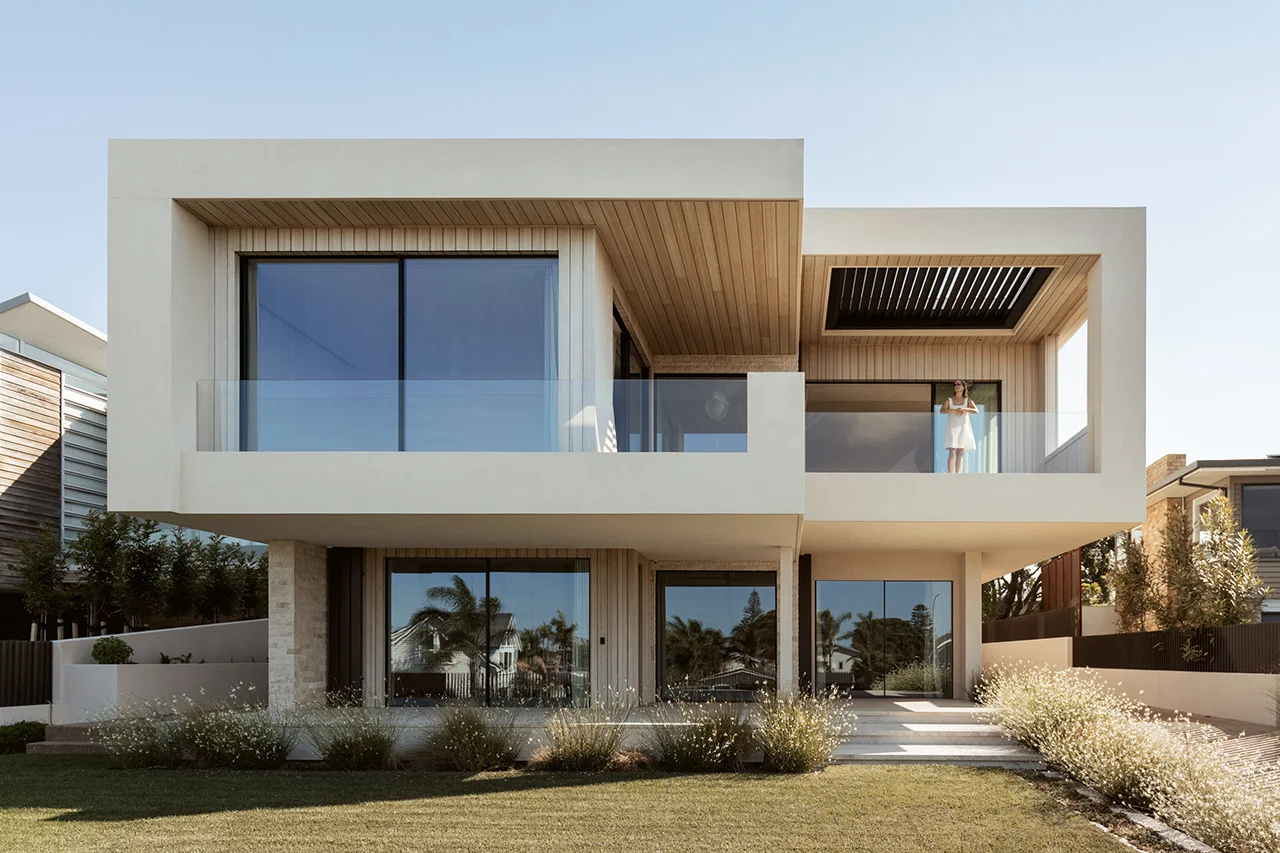

Florian Kāpiti Oracle Residences, Dunedin Oracle Residences, Dunedin Neilson House, Mount Maunganui
St Hilda’s Collegiate School Chapel, Dunedin St Hilda’s Collegiate School Chapel, Dunedin Florian Kāpiti Revealed on Ruahea
, Christchurch
Erskine, Wellington Erskine, Wellington Piccadilly Apartments, Wellington The Paddington, Wellington
Walker House Queenstown Hillmorton Hospital Christchurch Victor Apartments, Auckland Cantilever House, Havelock North
Newton Apartments, Wellington Newton Apartments, Wellington Salamanca Apartments, Wellington Farmers, Rangiora
Farmers, Rangiora Zavos Corner, Wellington Frame Apartments, Wellington Latimer Central Apartments, Christchurch
Preston Residences, Christchurch West End Square Residence, Christchurch Hamblyn House, New Plymouth The Orchards, Auckland
Harbour Drive House Whangamata
Pohutukawa-Coast-Auckland Pohutukawa-Coast-Auckland Salisbury-House-Tauranga
StoPoren Panel Facade - Christchurch Bayswater by Metlife Care, Mt Manganui Picton Library and Service Centre Stonewood Homes, Show Home Auckland



Click here to hide images.












StoArmour Panel

StoArmour Panels are available 50 mm thick x 2200 mm long x 600 mm wide, or 75 mm thick x 2200 mm long x 600 mm wide. They are installed horizontally over a 20 or 40 mm deep ventilated drainage cavity. The StoArmour Panel, with its aerated composition, provides insulation, fire and sound resistant properties recommended in the construction of today‘s residential and multi-level properties.





StoPoren Facades

Benefits

  • BRANZ Appraised

  • Weathertightness testing: E2/VM1 and AS/NZS 4284

  • Face load tested up to 4.5 kPa ULS

  • Vertical fire spread facade testing: ISO 5660-1 and BS 8414-2

  • Fire Resistance Rating (FRR): 120/120/120.

  • Ventilated cavity design

  • Good acoustic properties to reduce external noise

  • For residential and commercial construction

  • Time and cost efficient construction














StoArmat Miral Render System
over StoArmour Facade Panel

A BRANZ appraised high-performance render system providing exceptional crack resistance and weather protection. The system includes a stay-dry sealer for the StoArmour facade panel and uPVC flashings to lock into junctions and joinery forming a neat weathertight seal. The system includes a mineral-basecoat render, followed by StoArmat synthetic render with fibreglass mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. The system is finished in your choice of Stolit coloured finishing render and StoColor facade paint or clear sealer, for performance and protection that surpasses the facade durability requirements.



Installation is carried out by a Sto Registered Contractor (Licensed Building Practitioner) and comes with the added protection of a StoArmat 15 or 20 Year Warranty with StoService Assurance, to deliver long-term performance.









StoArmat Miral Render System over StoArmour Facade Panel
Click on each of the layers below to view the components of the system.







Component Builder armour_panel_armat_system_270 armour_panel_armat_system_270 armour_panel_armat_system_270 armour_panel_armat_system_230 armour_panel_armat_system_260 armour_panel_armat_system_241 armour_panel_armat_system_250 armour_panel_armat_system_240 armour_panel_armat_system_220 armour_panel_armat_system_210



01

Building Frame with Building Wrap or RAB



02

Cavity Batten

VH High-density EPS battens or H3.1 Timber Battens.



03

Substrate: StoArmour Facade Panel

A solid, steel reinforced lightweight concrete panel (AAC).

Dimensions: 50 mm thick x 2200 mm long x 600 mm wide, or 75 mm thick x 2200 mm long x 600 mm wide.



04

Sealer: S-Protect WS205 Silane

Stay-dry sealer for AAC materials.



05

Basecoat: StoLevell Novo

Lightweight mineral render with good adhesion properties, water retention agents and machine application properties.



StoLevell Novo



07

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



06

Reinforcement Render: StoArmat Render

An organic, weather resistant, cement-free and breathable, high-impact render, with a crack resistance six times higher than that of standard cement-based plasters.



sto bucket    stoarmat bend test



08

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



09

Coating:

StoColor coating based on IQ Technology for functional facades or a StoClear sealer.



StoColor Maxicryl

StoColor Dryonic

S-Protect SC Clear Sealer



sto-bucket



branz appraisal

BRANZ Appraisal 772

sto warranty

StoArmat 15 or 20 Year Warranty
with StoService Assurance














StoMiral Render System
over StoArmour Facade Panel

The StoMiral Render System is a BRANZ appraised, high-performance, cost-effective render system, that builds on the recognised stability of solid construction. The system includes a stay-dry sealer for the StoArmour facade panel and uPVC flashings to lock into junctions and joinery forming a neat weathertight seal. Followed by the application of a fibreglass mesh reinforced mineral base coat render. The system is finished in your choice of Stolit coloured finishing render and StoColor facade paint or clear sealer.



Installation is carried out by a Sto Registered Contractor (Licensed Building Practitioner) and comes with the added protection of a Sto 15 Year Warranty with StoService Assurance, to deliver long-term performance.









StoMiral Render System over StoArmour Facade Panel
Click on each of the layers below to view the components of the system.





Component Builder armour_panel_armat_system_170 armour_panel_armat_system_170 armour_panel_armat_system_170 armour_panel_armat_system_130 armour_panel_armat_system_160 armour_panel_armat_system_141 armour_panel_armat_system_140 armour_panel_armat_system_150 armour_panel_armat_system_120 armour_panel_armat_system_110



01

Building Frame with Building Wrap or RAB



02

Cavity Batten

VH High-density EPS battens or H3.1 Timber Battens.



03

Substrate: StoArmour Facade Panel

A solid, steel reinforced lightweight concrete panel (AAC).

Dimensions: 50 mm thick x 2200 mm long x 600 mm wide, or 75 mm thick x 2200 mm long x 600 mm wide.





04

Sealer: S-Protect WS205 Silane

Stay-dry sealer for AAC materials.



05

Basecoat: StoLevell Novo

Lightweight mineral render with good adhesion properties, water retention agents and machine application properties.



StoLevell Novo



06

Plus: Sto Glass Fibre Mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



07

Sealer: StoPlex W

Water-based, siloxane-enhanced consolidating sealer with water repellent and stability properties.



can



08

Finishing Render: Stolit Renders

Organically bound, highly weather resistant, strong, hard-wearing, impact-resistant, pre-coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural



plaster bucket



09

Coating:

StoColor coating based on IQ Net Technology for functional facades or a StoClear sealer.



StoColor Maxicryl

StoColor Dryonic

S-Protect SC Clear Sealer



sto-bucket



branz appraisal

BRANZ Appraisal 772

sto warranty

Sto 15 Year Warranty
with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology. They are certified globally and have been successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Coatings

StoColor facade paints and StoClear sealers are a range of a serviceable coatings embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System with 1000 shades, AC Architectural Colors, or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Maxicryl
Acrylic facade paint with high covering power and colour fastness for a natural look.

StoColor Dryonic
Biomimetic facade paint with Dryonic® Technology, for dry and clean facades to protect against algae and fungal attacks, with SunBlock and X-black Technology.

S-Protect SC Clear Sealer
Invisible silane treatment to repel water instantly and help prevent the adhesion of contaminants.

StoColor System
View the StoColor System here



Sto Paint






Data Sheets

sto detail expand



Download a Data Sheet:

Technical Datal Sheet (TDS) / Material Saftey Data Sheet (MSDS) / Sustainability Data Sheet (SDS)

Facade Panel:



DS
StoArmour Facade Panel
PDF PDF



Primers / Sealers:



DS
StoFlexyl
PDF PDF PDF
DS
S-Protect WS205
PDF PDF
DS
StoPlex W
PDF PDF



Reinforcement Mesh:



DS
Sto Glass Fibre Mesh 4mm
PDF
DS
Sto Glass Fibre Mesh 7mm
PDF



Reinforcement Render / Base Render:



DS
StoPoren Render
PDF PDF
DS
StoLevell Novo
DS
StoArmat Classic Render
PDF PDF PDF



Finishing Renders:



DS
Stolit K 1.0mm
PDF PDF PDF
DS
Stolit K 1.5mm
PDF PDF PDF
DS
Stolit K 2.0mm
PDF PDF PDF
DS
Stolit K 3.0mm
PDF PDF PDF
DS
Stolit MP & MP Natural
PDF PDF PDF
DS
Stolit Milano
PDF PDF



Coatings:



DS
StoColor Maxicryl
PDF PDF PDF
DS
StoColor Dryonic
PDF PDF
DS
S-Protect SC Clear Sealer
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification

Please register all completed Sto specifications to info@sto.co.nz to ensure project confirmation and Sto warranty.



SS505
StoMiral Render System on 50mm StoArmour Facade Panel
Specification Icon
SS506
StoArmat Render System on 50mm StoArmour Facade Panel
Specification Icon
MasterSpec
4282SP - StoArmour Facade Panel System
Specification Icon



Download a BRANZ Appraisal



BRANZ Appraisal
772 - StoArmour Facade Panel System
Branz Appraisal
